Jasic EVO Cut 80 Plasma Inverter Package | 415V 3-Phase

Jasic EVO CUT 80 Plasma Inverter Package

At Premier Welding we aim to offer amazing value for top quality products. The Jasic EVO CUT 80 is a powerful 3-phase plasma inverter designed for precision cutting, durability, and performance. Built with rugged construction and ClearVision technology, it ensures consistent results in demanding industrial environments. With SurePlasma arc ignition and advanced inverter design, the CUT 80 delivers reliability and clean cuts across a wide range of applications.

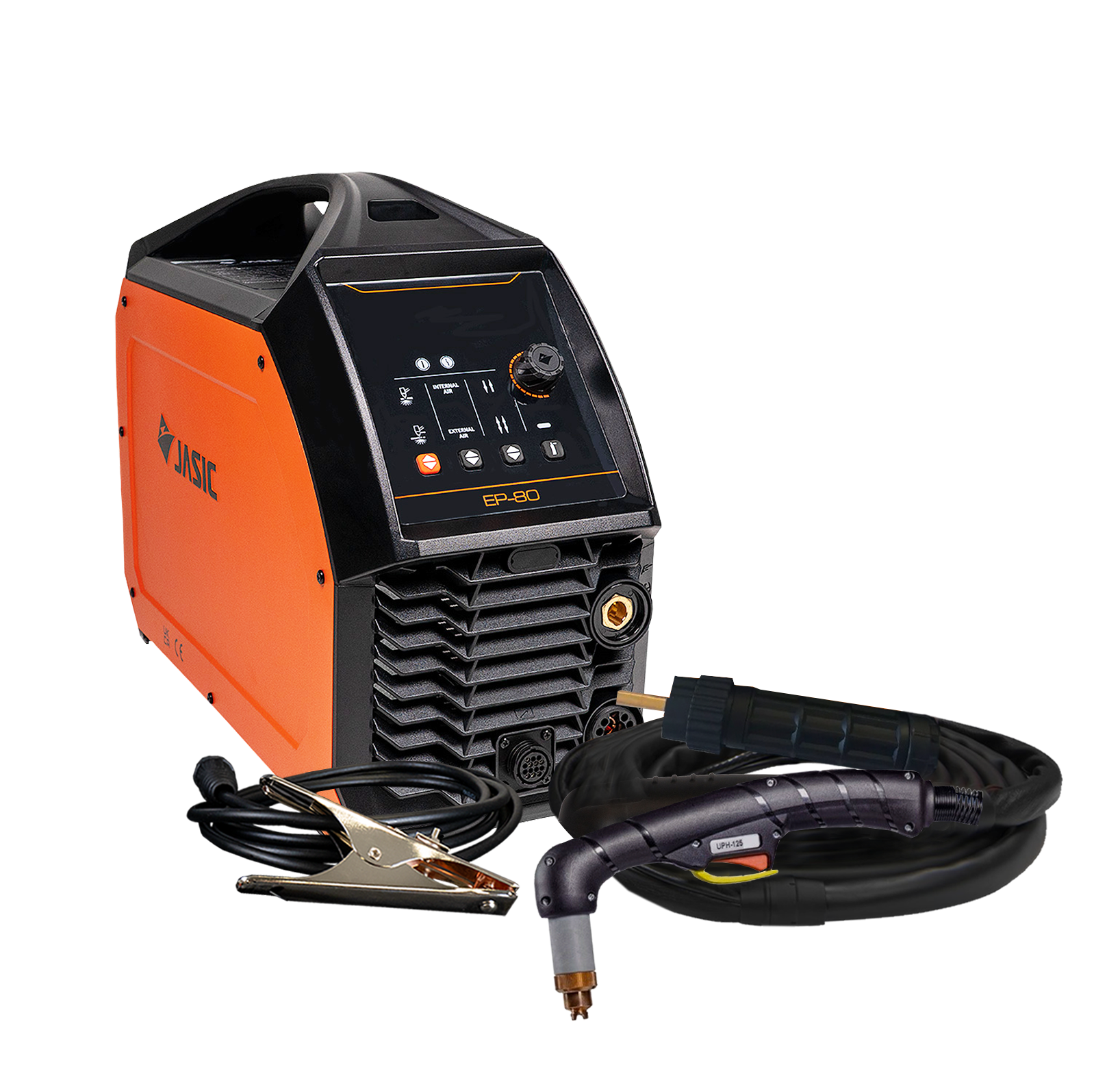

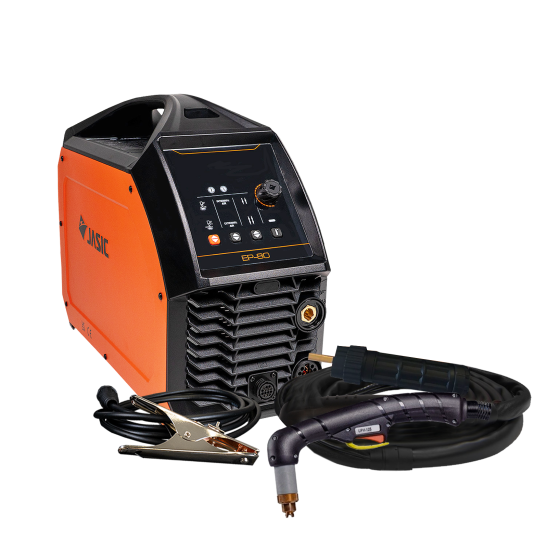

 Package Includes

EVO CUT 80 Plasma Inverter

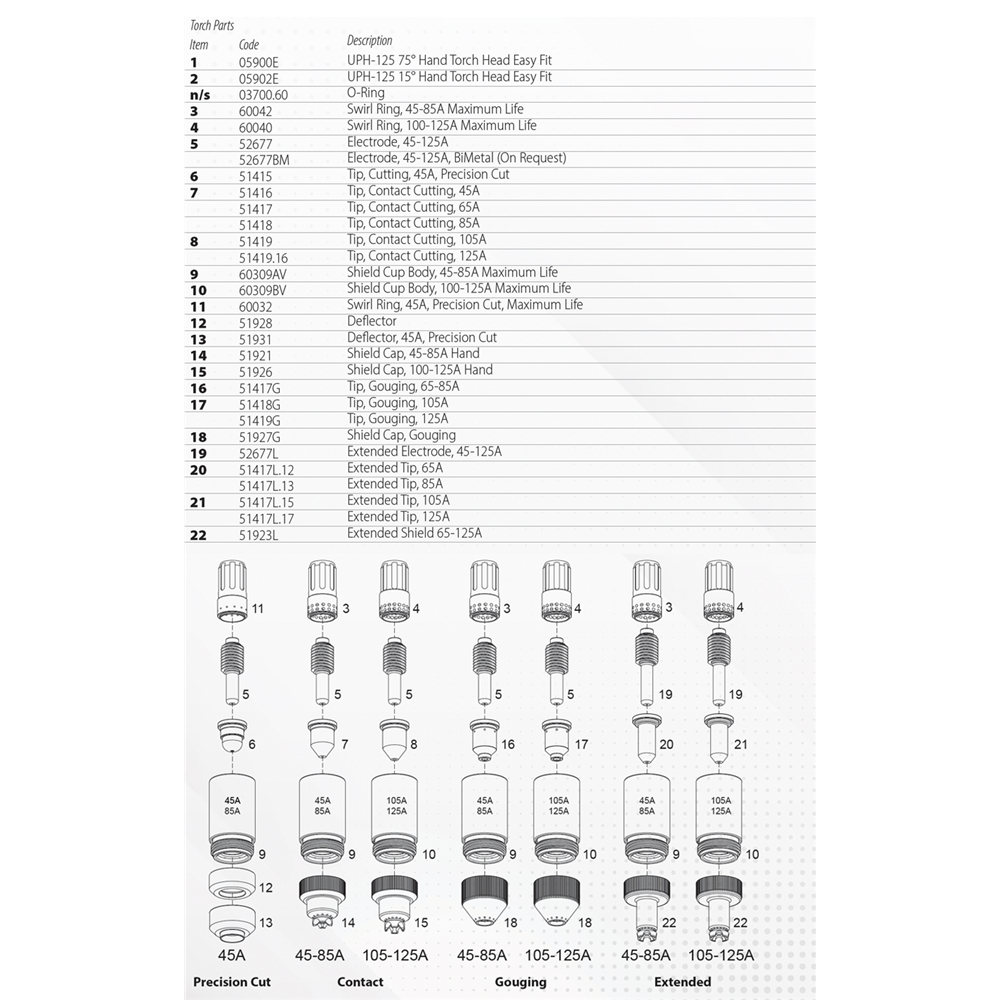

UPH-125 Cutting Torch (6m)
Earth Clamp & Lead (3m)
USB Stick with Operating Manual

Optional Add-On: Pair your EVO CUT 80 with the Jasic AP-140 Air Compressor for the ultimate all-in-one plasma cutting system.

This is ideal for:

• Heavy fabrication and industrial cutting
  Precision metal cutting in workshops and site environments
  CNC plasma cutting with 14 Pin CNC interface
  Demanding production and fabrication tasks

What Does it Cut?

Carbon Steel (Clean Cut): Up to 25 mm @ 400 mm/min
Carbon Steel (Severance): Up to 35 mm
Carbon Steel (Pierce Cut): Up to 20 mm

Features

• Rugged, ergonomic design for durability
  ClearVision technology for improved visibility
  HF stabilising technology for consistent arc performance
  SurePlasma technology for stable ignition across torch lengths
  Mesh cutting, 2T/4T, non-HF arc ignition and pilot arc
  Gas check, postflow time, and cutting torch length setting
  Generator friendly with AVR support
  Quick factory reset and auto sleep mode for efficiency
  ABAP: Active Balancing Air Passage for advanced cooling
  Fan on demand to reduce dust intake and noise
  USB Type-C port for software updates and device charging
  14 Pin CNC interface for automated cutting applications
  Overcurrent and overheat protection

Technical Data

• Input Voltage: 3PH, AC 400 V ±15%, 50/60 Hz
  Current Range: 20–80 A
  Rated Duty Cycle @ 40 °C: 80 A @ 40%
  Clean Cut (Carbon Steel): 25 mm @ 400 mm/min
  Severance (Carbon Steel): 35 mm
  Pierce Cut: 20 mm
  Minimum Air Pressure: 5 Bar (73 psi)
  Minimum Gas Flow: 7.1 CFM (200 Ltr/min)
  Efficiency: ≥85%
  Power Factor: ≥0.9
  Idle State Power: ≤50 W
  Protection Class: IP23S
  Insulation Class: H
  Arc Ignition: Non HF
  Dimensions (L × W × H): 626 × 230 × 416 mm
  Weight: 22 kg
  Recommended Generator Size: AVR required

Why Buy the Jasic EVO CUT 80?

The Jasic EVO CUT 80 offers robust 3-phase cutting performance for professionals who demand efficiency and precision. With its 25 mm clean cut capability, CNC compatibility, and rugged build, it’s ready for industrial and heavy-duty work. Advanced features such as SurePlasma arc control, ClearVision technology, and energy-efficient inverter design ensure reliability and performance. Backed by a 5-year warranty, the EVO CUT 80 is built to deliver results every time.
