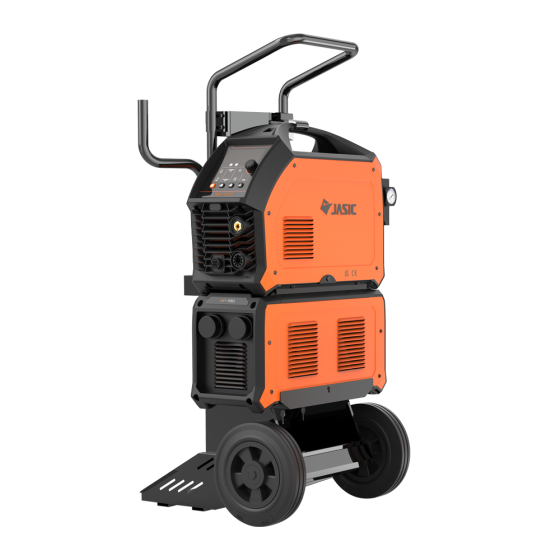

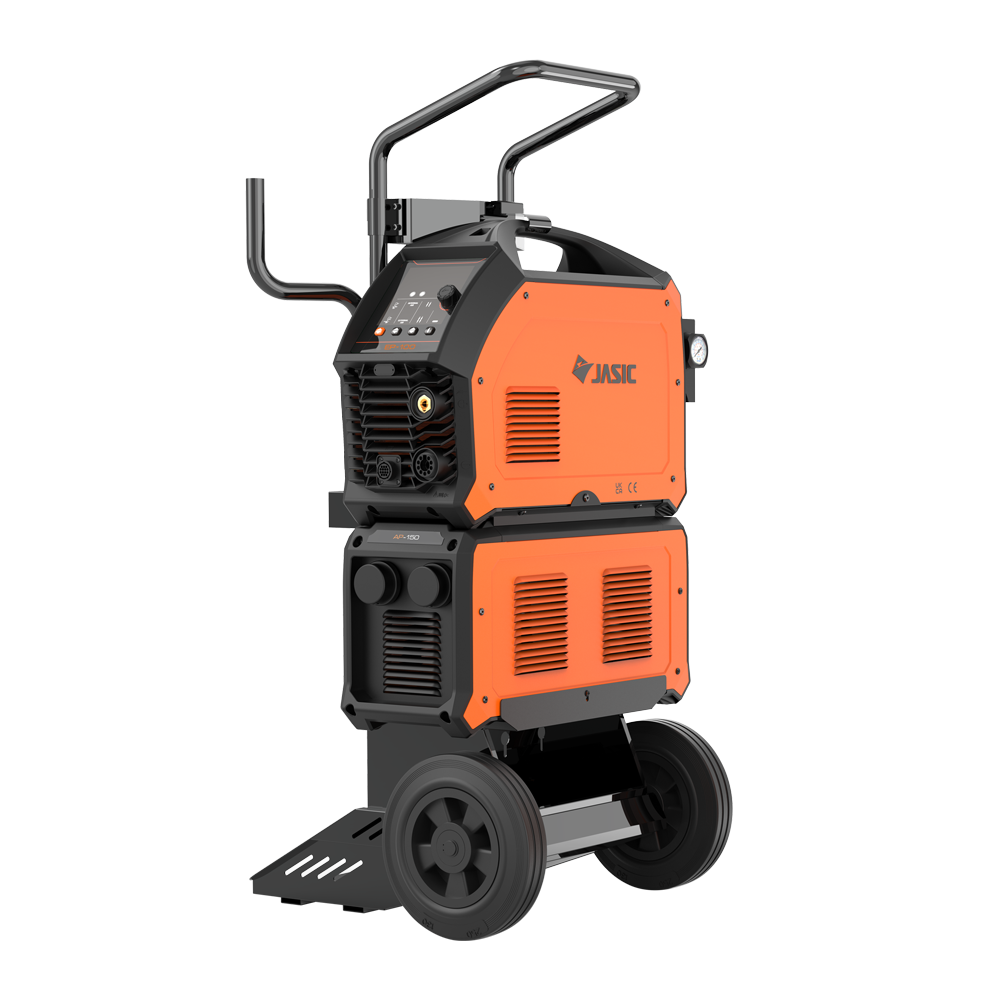

Jasic EVO CUT 100 SC Plasma Inverter c/w Compressor 415v
 Jasic EVO CUT 100 SC Plasma Inverter c/w Compressor 415v

Jasic EVO CUT 100 SC Plasma Inverter c/w Compressor 415v

SKU: ZXEP-100SC | MPN: ZXEP-100SC

Be the first to review this product

£2,898.00 £2,415.00
- +

#

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

Jasic EVO CUT 100 Plasma Inverter Package (3-Phase)

At Premier Welding we aim to offer amazing value for top quality products. The Jasic EVO CUT 100 is a heavy-duty 3-phase plasma cutting inverter, engineered for precision, power, and reliability in demanding industrial environments. Designed with rugged durability and advanced inverter technology, it delivers consistent cutting performance across a wide range of conductive metals.

Package Includes

EVO CUT 100 Plasma Inverter
AP-150 Integrated Compressor
Trolley
UPH-125 Plasma Cutting Torch (6m)
85A Consumable Starter Pack
Earth Clamp & Lead (3m)
USB Stick with Operating Manual
5-Year Warranty (upon registration)

This is ideal for:

  • Heavy-duty fabrication and industrial cutting
    Workshops needing a powerful all-in-one plasma solution
    Mesh, plate cutting and CNC-integrated operations
    On-site jobs requiring a portable but high-capacity cutter

What Does it Cut?

Clean Cut (carbon steel): up to 25mm at 400mm/min
Severance Cut (carbon steel): up to 35mm
Pierce Cut: up to 20mm
Stainless steel
Aluminium
Other conductive metals

Features

  • ClearVision technology for excellent visibility and operator control
    SurePlasma non-HF arc ignition for consistent starts, even with varying torch lengths
    Mesh cutting and 2T/4T functionality for versatility in complex tasks
    Advanced MUC intelligent digital control for precision and adaptability
    PWM technology with high-power IGBT components for efficient, reliable performance
    ABAP (Active Balancing Air Passage) for targeted cooling and dust management
    Fan-on-demand and adjustable post-flow settings for efficiency and consumable life
    Integrated AP-150 compressor for maximum portability
    USB Type-C port for software updates and device charging
    AVR generator compatible
    Overcurrent and overheat protection for safety and durability
    Supplied with inverter trolley for easy mobility
    Backed by a comprehensive 5-Year Warranty

Technical Data

  • Input Voltage: 3PH, AC 400V ±15%, 50/60Hz
    Output Current: 20–100A
    Duty Cycle @ 40°C: 100A @ 40%
    Open Circuit Voltage (OCV): 310V
    Air Pressure: Built-in AP-150 compressor
    Efficiency: ≥85%
    Power Factor: ≥0.9
    Idle Power: ≤50W
    Protection Class: IP23S
    Dimensions (L × W × H): 626 × 230 × 416 mm
    Weight: 64 kg (including integrated compressor & trolley)

Why Buy the Jasic EVO CUT 100 SC?

The Jasic EVO CUT 100 SC combines industrial cutting performance with the convenience of an integrated compressor and trolley, making it a true plug-and-play solution for demanding fabrication work. Capable of clean cuts up to 25mm and severance up to 35mm, it offers power, precision, and reliability in one package. With advanced digital control, safety protections, and Jasic’s industry-leading 5-year warranty, this is a plasma cutter built to perform and built to last.
