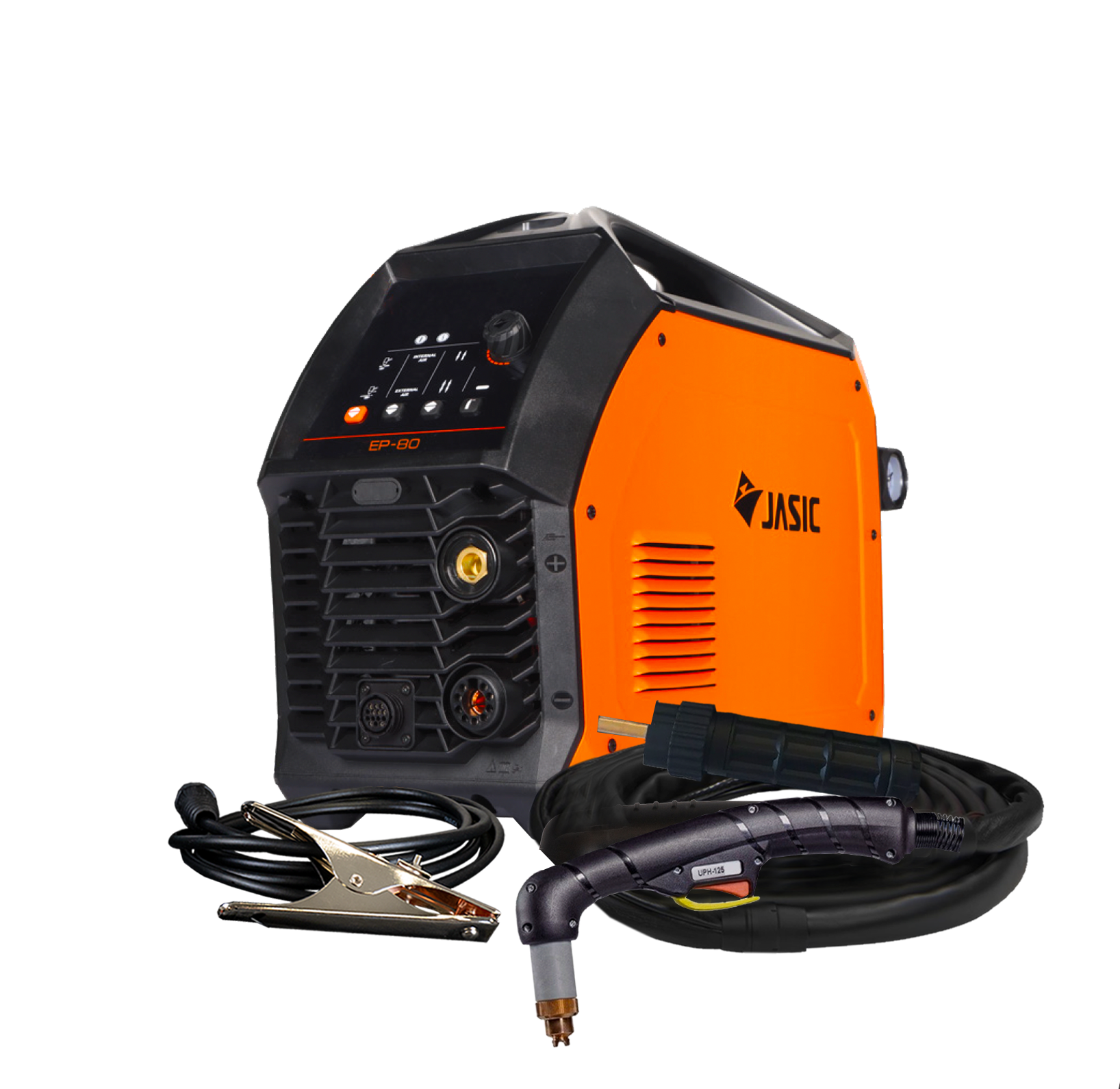

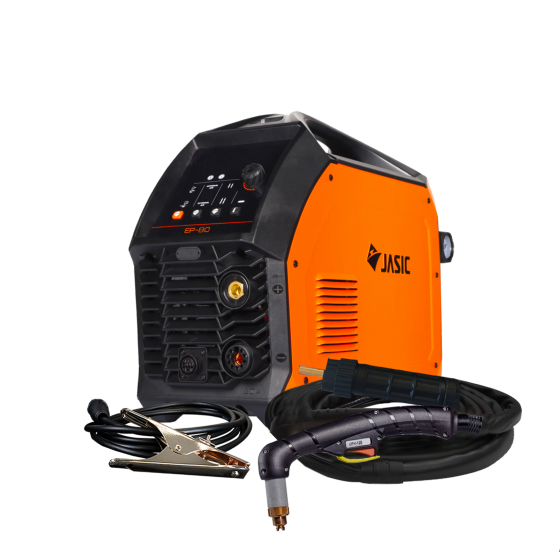

Jasic Pro Air Cut 80 Plasma Cutter (400V)
Information
Information
THE JASIC RANGE COMES WITH AN INCREDIBLE 5 YEAR WARRANTY
THIS PACKAGE INCLUDES
- Pro Air Cut 80 Plasma Cutter
- Plasma Torch
- Work return lead and clamp
Click HERE For Date Sheet
The New Jasic Pro Plasma Cut 80 is professional high-end cutting inverter equipped with the latest IGBT technology.
This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance.
The machine provides variable cutting control that allows the operator to produce precise smooth cuts.
Features
Latest IGBT plasma cutting inverter
Lightweight, portable robust design
Variable cutting control
6 str hand torch with Euro connection
Non HF ignition
LED display
Smooth precise cutting
Simple operation
CNC connection
Generator friendly
Technical
Input Voltage AC 415V - 50/60 Hz
Input Power 12 kVA
Recommended Input Fuse 25A
Efficiency 85%
Current Range 20-80A
Duty Cycle @40°C 80A @ 40%
Cutting Capacity (Clean Cut) 25mm
Cutting Capacity (Severance Cut) 30mm
Power Factor 0.7
Protection/Insulation Class IP21S/F
Compressed Air Requirement 200 Ltr/Min @ 5 Bar
Dimensions 540 x 250 x 380mm
Weight 15kg
Technical Specification
Technical Specification
MPN | JP-80 |
SKU | JP-80 |
