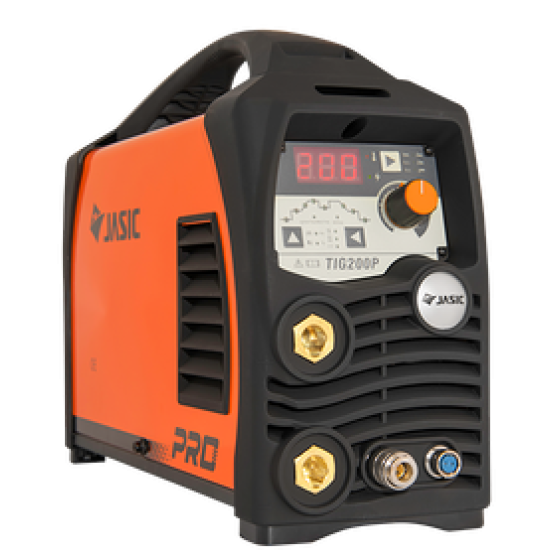

Jasic Pro Tig 200 Pulse PFC Wide Voltage (110V-230V)

Be the first to review this product

In Stock
Price
£718.20 £598.50


0% Fiance Available
Jasic  Pro Tig 200 Pulse PFC Wide Voltage (110V-230V) Jasic  Pro Tig 200 Pulse PFC Wide Voltage (110V-230V)
Jasic  Pro Tig 200 Pulse PFC Wide Voltage (110V-230V)
Jasic  Pro Tig 200 Pulse PFC Wide Voltage (110V-230V)

Jasic Pro Tig 200 Pulse PFC Wide Voltage (110V-230V)

Payment Options £718.20

Information

Information

The Jasic Range comes with an incredible 5 Year Warranty

THIS PACKAGE INCLUDES

  • Pro Tig 200
  • Tig Torch & Adaptor
  • Gas Regulator
  • Work return lead

The Jasic dual voltage TIG 200 Pulse DV is equipped with powerful IGBT components and a singular PCB fwhich will improve efficiency and maintenance.

This technologically advanced inverter is extremely user-friendly and offering a reliable and consistant arc performance. The TIG 200 with high frequency starting also offers MMA functionality making it an ideal choice for maintenance or manufacturing.

FEATURES

IGBT Inverter technology combining high efficiency and fast switching

Digital control panel with parameter autosaving

DC Pulse TIG / MMA

Hot start ignition, lift arc, HF arc ignition, 2T/4T

Down slope & post flow

High frequency inverter, high-efficiency

Pulse frequency 0.5 - 200 Hz

Easy start, stable and reliable arc

Auto-compensation for voltage fluctuation

Advanced single PCB construction

Generator friendly

Technical Data

Input Voltage 95-265V - AC 50/60Hz

115V 230V

Ieff (A) 27.7 14.2

Input Power (kVA) 4 6

Current Range (A) TIG 10 - 200

MMA 10 -125

TIG 10 - 200

MMA 10 - 180

Duty Cycle @ 40°C TIG 160A @ 60%

MMA 125A @ 60%

TIG 200A @ 30%

MMA 180A @ 25%

No-Load Voltage (V) 65

Efficiency (%) 85

Pulse Frequency (Hz) 0.5 - 200

Power Factor 0.99

Protection/Insulation Class IP21S/F

Dimensions (LxWxH mm) 420 x 135 x 277

Weight (Kg) 7.5



Technical Specification

Technical Specification

SKU JT-200PDV
