Jasic MIG-272S Separate Inverter Package | 240V
Jasic MIG-272S Separate Inverter Package | 240V Jasic MIG-272S Separate Inverter Package | 240V

Jasic MIG-272S Separate Inverter Package | 240V

SKU: ZXJM-272S | MPN: ZXJM-272S

Be the first to review this product

£2,718.00 £2,265.00
- +

#

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

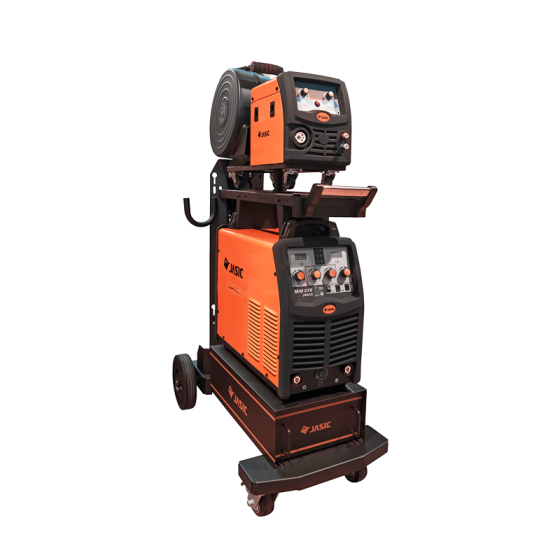

Jasic MIG-272S Separate Inverter Package

At Premier Welding we aim to offer amazing value for top quality products. The Jasic MIG-272S Separate Inverter Package combines high power, flexibility and control in one rugged package. Whether you're working in fabrication, repair, or workshop environments, this machine delivers strong performance with a 5-year warranty to back it.

Package Includes

  • Inverter power source
    4-roll wire feed unit
    Trolley (capable of taking a full-size gas cylinder)
    5 m interconnecting cable
    MIG welding torch
    Work return lead & clamp
    Gas hose & regulator
    Operating instructions
    5-year warranty (subject to product registration)



This Is Ideal For

  • Heavy-duty single phase MIG welding tasks
    Industrial fabrication, workshop, and repair work
    Users who need flexibility in wire diameter and consistent wire feed
    Long welds, demanding weld cycles where duty cycle matters

What Does it Weld?

  • MIG/MAG welding with wire sizes 0.6, 0.8, 1.0 & 1.2 mm
    Mild / carbon steel and common stainless steel when using appropriate wires
    MMA & Lift-TIG welding (multi-process capability)

Features

  • Single phase IGBT inverter technology for efficient, reliable welding
    Digital ammeter & voltmeter for precision control
    2T / 4T trigger function for flexible operation
    Variable inductance control & burn-back / wire-inching adjustment for fine tuning arc behaviour
    Gas-check function and status / power LED indicators
    High duty cycle even though it runs from single phase supply
    Compact 4-roll wire feed unit & strong trolley support

Technical Data

Input Voltage: AC 230V – 50/60 Hz
Input Current (Ieff): 28.9 A
Input Power: 12.1 kVA
Voltage Adjustment Range: 11–29 V
Current Range: 30–270 A
Duty Cycle (at 40 °C): 270 A @ 30%
No-Load Voltage: 54 V
Wire Speed: 0–16 m/min
Efficiency: 85%
Power Factor: 0.75
Protection / Insulation Class: IP21S / F
Overall Dimensions (L×W×H mm): 1020 × 505 × 1460
 Weight: 101 kg

Why Buy the Jasic MIG-272S?

You get serious welding power in a single-phase package. Strong duty cycle, precise controls, and full wire feed flexibility make it perfect for demanding tasks—and the robust build ensures longevity. The 5-year warranty gives confidence in long-term reliability. If you want a MIG machine that can handle tough work, delivers clean welds, and gives you versatility in wire diameter, the MIG-272S is a smart investment.

Specifications

General

SKU
ZXJM-272S
Weight (kg)
1
Manufacturer
Jasic
MPN
ZXJM-272S

Product Attachments

Jasic_MIG_272S
(920.91 kB)

Frequently Asked Questions

What is the warranty on Jasic welders?
Jasic welders come with an industry-leading 5-year warranty when registered.
Are Jasic welders suitable for professional use?
Jasic welders are built for professional and industrial use, offering durability, advanced features, and consistent performance for demanding jobs across various industries.
What power supply do Jasic welders require?
Depending on the model, Jasic welders operate on either a 230V or 400V power supply. Always check the specifications of your specific machine to ensure compatibility with your power source.
What materials can I weld with a Jasic welder?
Jasic welders can handle a variety of materials, including steel, aluminium, and stainless steel. The suitability depends on the model and welding process, such as MIG, TIG, or MMA.
What is the duty cycle on a Jasic welder?
The duty cycle of a Jasic welder depends on the model. For example, the Jasic Pro MIG 200 has a 35% duty cycle at 200 amps. Always consult the product specifications for detailed performance metrics.
What accessories are available for Jasic welders?
Jasic provides a wide range of accessories, including welding torches, wire feeders, and protective gear. These are designed to enhance performance and usability across various welding applications.
How energy efficient are Jasic welders?
Jasic welders are highly energy-efficient due to their inverter technology. This ensures minimal energy consumption while delivering consistent and reliable welding performance.
Does Premier Welding offer financing options for Jasic welders?
Premier Welding offers flexible financing options, including 0% APR on purchases over £99 through PayPal. This allows you to spread the cost of your Jasic welder interest-free.
Can you MIG weld stainless steel?
Yes, you can MIG weld stainless steel. It requires a suitable filler wire, typically ER308L, and a shielding gas like argon mixed with CO2. Ensure proper settings on your MIG welder for optimal results, and maintain cleanliness to prevent contamination.
How to choose a welder?
When choosing a welder, consider the type of welding you'll be doing (MIG, TIG, or Stick), the materials you'll work with, and your skill level. Look for a machine with the right amperage range, portability, and safety features. Don’t forget to check reviews!
How to MIG weld aluminum?
To MIG weld aluminium, ensure you use a spool gun or a push-pull system for better wire feed. Clean the aluminium surface thoroughly to remove oxides. Set the welder to the correct voltage and wire speed, and maintain a steady travel speed for a consistent bead.
How to MIG weld for beginners?
To MIG weld as a beginner, start by setting up your welder with the correct wire and gas. Clean the metal surfaces, then adjust the voltage and wire feed speed. Hold the torch at a 15-degree angle, maintain a steady speed, and practice on scrap metal to improve your technique.
Metals and how to weld them?
Welding metals involves understanding their properties. Common types include mild steel, stainless steel, and aluminium. Use MIG for mild steel, TIG for stainless, and MIG or TIG for aluminium. Always ensure proper preparation, safety gear, and suitable filler materials.
MIG welding what is it?
MIG welding, or Metal Inert Gas welding, is a popular welding process that uses a continuous wire electrode and an inert gas to shield the weld from contamination. It's known for its speed and versatility, making it ideal for various materials and applications.
What equipment do welders use?
Welders use various equipment, including welding machines (MIG, TIG, and stick welders), protective gear (helmets, gloves, and aprons), gas cylinders, welding rods, and accessories like clamps and wire brushes. Proper tools ensure safety and quality in welding projects.
