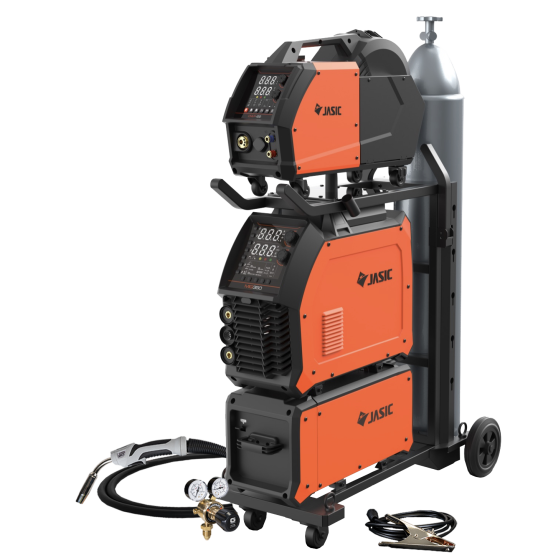

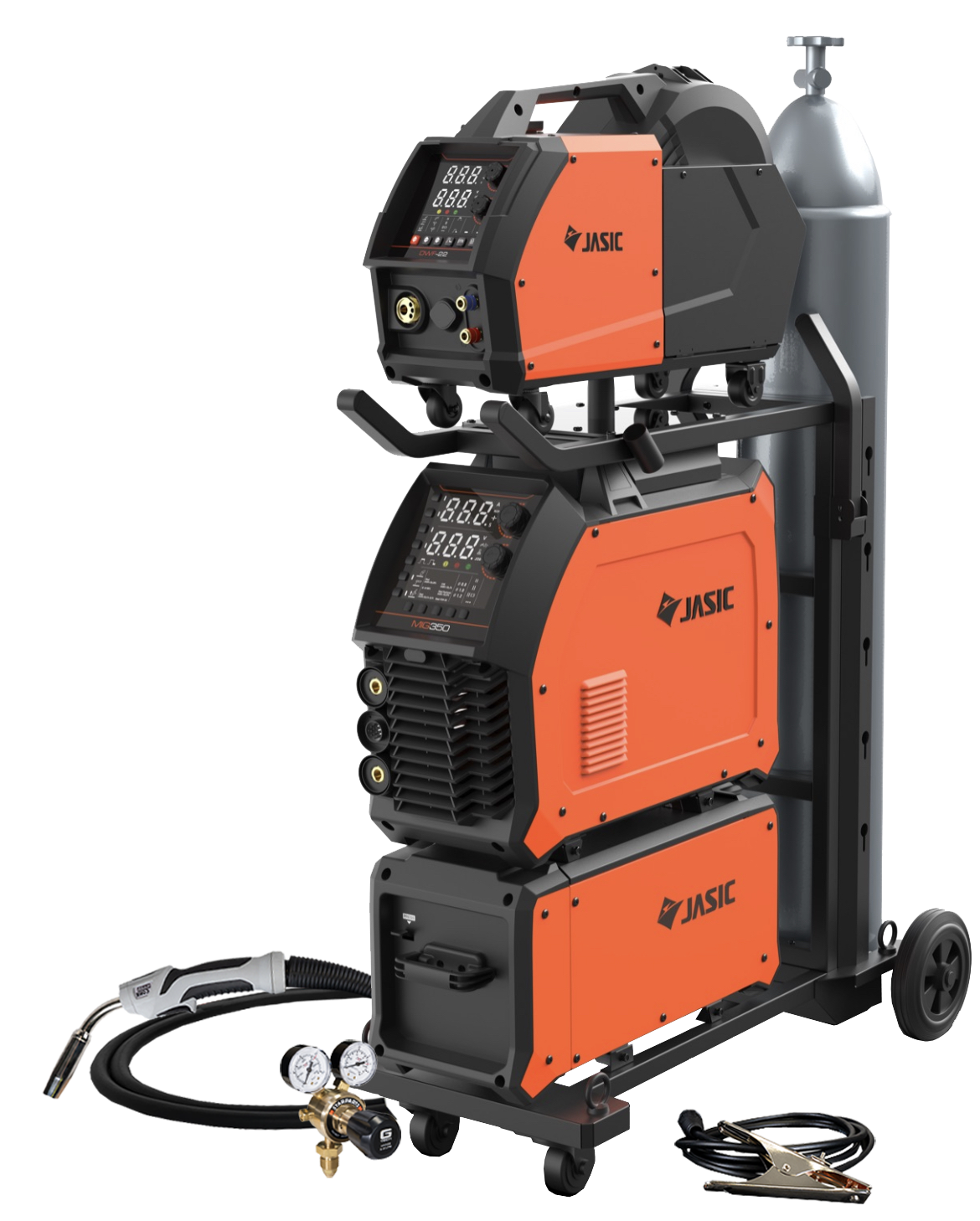

Jasic EVO MIG 350S Multi Process Separate Air | 415V 350A

Jasic EVO MIG 350S Multi Process Separate Air Cooled Package

Transform your welding projects with the Jasic EVO MIG 350S Separate, the professional-grade industrial welding machine that delivers precision, power, and reliability in one rugged package. Built with advanced ARM and DSP digital microprocessor control, it adapts effortlessly to heavy industrial fabrication or intricate metalwork, ensuring clean and consistent welds every time.

The separate wire feed unit features a ClearVision HD digital display with intuitive rotary encoders, giving operators full control of parameters with ease—even in the most demanding environments. Enhanced dual-drive wire feeders with precision 37.45mm rollers guarantee smooth, consistent wire delivery, while synergic/manual MIG/MAG, MMA, and DC Lift-TIG capabilities allow seamless switching between welding processes.

Engineered for efficiency, the EVO MIG 350S includes on-demand cooling and auto sleep mode, reducing idle power consumption to less than 10W. With IP23S protection, robust construction, and advanced safety features, this machine is built to perform reliably in challenging conditions. Flexible control options—including wired, wireless, and mobile app connectivity—put you in charge, while program memory storage simplifies repeat jobs.

Backed by an industry-leading 5-year warranty, the EVO MIG 350S gives you peace of mind and the performance you can trust day after day.

Package Options - This machine is available in two package options, allowing you to choose the interconnection cable length to suit your workshop or site setup:

Option 1: 5m Interconnection Cable

• MIG/Multi Process Inverter Power Source
  Separate Wire Feed Unit (4 Roll)
  5m Interconnection Cable
  Trolley with integrated toolbox
  HC400-4E MIG Torch (4m)
  Feedrolls
  Argon Regulator
  Gas Hose
  3m Earth Clamp

Option 2: 10m Interconnection Cable

• MIG/Multi Process Inverter Power Source
  Separate Wire Feed Unit (4 Roll)
  10m Interconnection Cable
  Trolley with integrated toolbox
  HC400-4E MIG Torch (4m)
  Feedrolls
  Argon Regulator
  Gas Hose
  3m Earth Clamp

This Is Ideal For

• Industrial fabrication and production welding
  Workshops requiring reliable high-output performance
  MIG, MMA and TIG users needing multi-process flexibility
  Generator-friendly operation for site work (AVR required)

What Does it Weld?

• Mild steel
  Stainless steel
  Aluminium (with spool gun or push-pull torch)
  Flux-cored wires

Features

• ARM and DSP digital microprocessor control for precision welding
  ClearVision HD digital display with rotary shaft encoders
  Synergic/manual MIG/MAG, MMA and DC Lift-TIG capability
  Enhanced dual drive wire feeder with 37.45 mm rollers
  2T/4T trigger, cycle and spot control modes
  Crater fill settings for improved weld finishes
  Excellent arc stability with reduced spatter
  Program memory storage for repeat welding tasks
  Auto sleep mode with idle consumption under 10 W
  On-demand cooling system for efficiency and reliability
  Flexible remote control solutions: wired, wireless and mobile app
  USB Type-C port for software updates and device charging
  IP23S protection rating
  Robust trolley with integrated toolbox
  Generator friendly (AVR required)
  Backed by a comprehensive 5-year warranty

Technical Data

Input Voltage: AC 400 V, 50/60 Hz
MIG Current Range: 30–350 A
MMA Current Range: 20–350 A
TIG Current Range: 20–350 A
Duty Cycle @ 40 °C: 350 A @ 50%
Rated Input Power: MIG 14.6 kVA / MMA 15.2 kVA / TIG 11.1 kVA
Rated Input Current (MIG): 21 A (Ieff 14 A)
Wire Feed Speed: 2–24 m/min
Wire Spool Size: D300
No Load Voltage: 78 V (VRD 15 V)
Efficiency: >88%
Power Factor: 0.92
Idle State Power: 10 W
Protection Class: IP23S
Insulation Class: H
Dimensions (L × W × H): 1060 × 550 × 1290 mm
Weight: 85 kg
Recommended Generator Size: 22.5 kVA (AVR required)

Why Buy the Jasic EVO MIG 350S Separate?

The Jasic EVO MIG 350S Separate is built for professional welders who need maximum performance and flexibility. With synergic/manual MIG, MMA and Lift-TIG modes, advanced digital controls, and a high duty cycle, it delivers clean, precise welds across a wide range of applications. The ClearVision HD display and dual drive wire feed ensure accuracy and consistency, while energy-saving features like auto sleep mode reduce running costs. Backed by a 5-year warranty and available with either a 5m or 10m interconnection cable, this machine is a robust and reliable investment for workshops and industrial environments.
