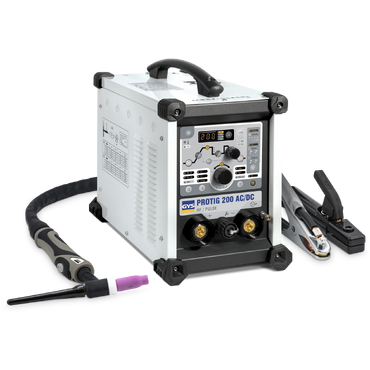

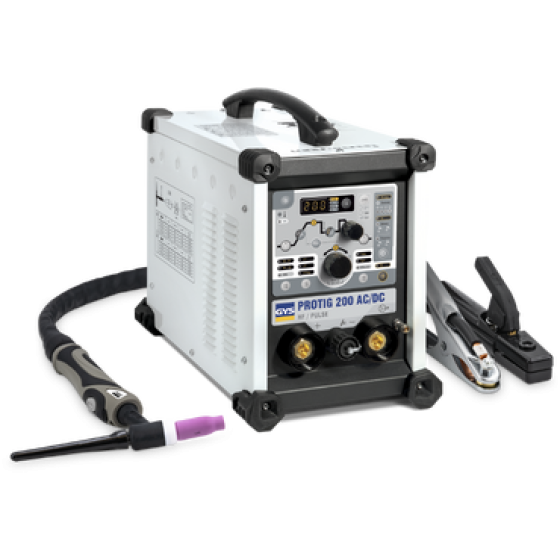

GYS PROTIG 200 AC/DC PACKAGE 240V

The PROTIG 200 AC/DC is a 200 A single-phase TIG and MMA welding power source designed for professional workshop and site use. Compact, portable and versatile, it offers AC/DC TIG capability for welding steel and aluminium, as well as MMA functionality for coated electrodes. With advanced secondary regulation, it guarantees excellent arc stability and a constant welding current in all positions.

Package Includes

• PROTIG 200 AC/DC power source (Ref. 068742)
  TIG 26B torch – 4 m
  Electrode holder – 2 m (25 mm²)
  Earth cable – 2 m (25 mm²)

This is ideal for:

• Workshop fabrication and maintenance
  AC/DC TIG welding on steel, stainless steel and aluminium
  Thin sheet welding using TIG Pulse modes
  Aluminium welding with Easy AC function
  Pipe and positional MMA welding
  Users requiring a compact 230 V AC/DC TIG machine

What Does it Weld?

• TIG DC:
  Steel, stainless steel, copper, magnesium, titanium

  TIG AC:
  Aluminium and aluminium alloys

  MMA:
  Rutile and basic electrodes up to Ø 4 mm

  MMA Pulse:
  Vertical-up welding (pipes / pipelines)

  Maximum recommended material thickness: up to 4 mm

Features

• TIG DC current range: 10–160 A
  TIG AC current range: 10–200 A
  MMA current range: 10–160 A

  DC Standard TIG
  DC Pulse TIG
  AC Standard TIG
  AC Pulse TIG
  Easy AC mode (automatic parameter setting based on tungsten diameter)

  Spot mode (AC or DC TIG)

  HF ignition (contactless)
  HF contact ignition (for electrosensitive environments)

  2T / 4T / 4T LOG trigger modes
  Automatic torch detection (trigger & double-button compatible)
  Stores up to 30 programs per welding process
  Advanced secondary regulation for stable arc performance
  Current & voltage display during and after welding (DMOS/QMOS)
  Built-in Anti-Stick, Adjustable Hot Start & Arc Force (MMA)
  VRD (Voltage Reduction Device – reduces no-load voltage to 10 V when activated)
  Smart ventilation system
  Surge protected up to 400 V (PROTEC 400)
  Reinforced body with anti-shock pads
  Generator compatible (±15%)
  IP21 protection
  Compact 12.5 kg design

Technical Data

• Input Voltage: 230 V single-phase
  Fuse: 16 A
  Maximum input power: 7.5 kW

  TIG DC Duty Cycle @ 40°C:
  160 A @ 20%
  90 A @ 60%

  TIG AC Duty Cycle @ 40°C:
  200 A @ 20%
  115 A @ 60%

  MMA Duty Cycle @ 40°C:
  160 A @ 20%
  90 A @ 60%

  Dimensions: 24 × 43 × 35 cm
  Weight: 12.5 kg
  Protection Class: IP21
  Standard: EN 60974-1

Why Buy the PROTIG 200 AC/DC?

The PROTIG 200 AC/DC delivers professional AC/DC TIG and MMA performance from a compact 230 V single-phase machine, combining aluminium capability, pulse welding modes, programmable memory, HF ignition and integrated safety features to provide versatile and stable welding performance in workshop and light industrial environments.
