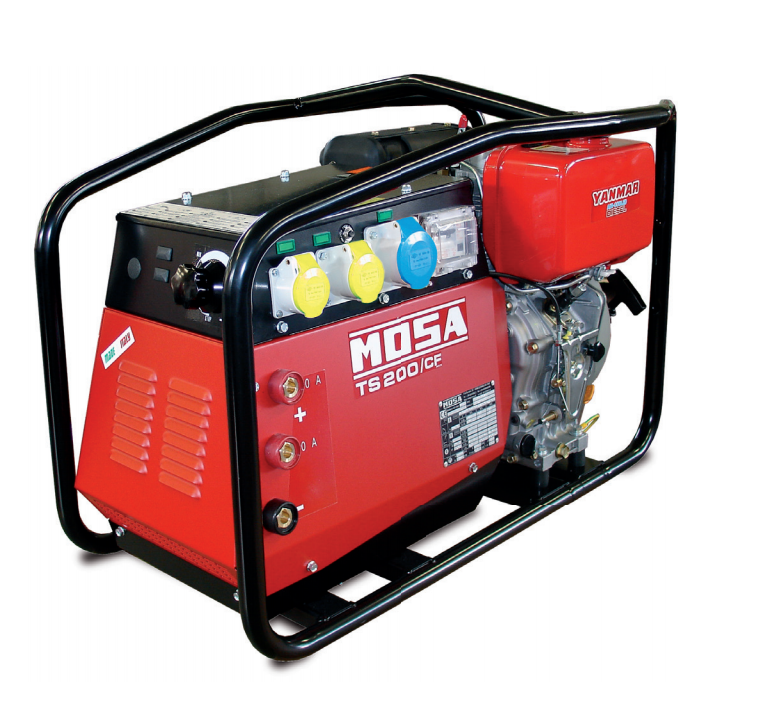

MOSA TS 200 DES/CF - Diesel (190A)
Information
Information
Diesel Engine driven welder - Yanmar L 100 N Engine - Three-phase asyncronous alternator - Three-phase generation 6 kVA - Single-phase generation 5 kVA - Max welding current: 190A
The engine-driven welder TS-200 DS/CF is a professional machine without electronics capable of delivering up to 190 A with a duty cycle of 60%. The welding current is adjusted by changing the rpm of the engine.
Equipped with a YANMAR L100N diesel engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.
The welding current is continuous and has two welding scales (20-100A / 90-190A) that are selectable by connecting to two different welding sockets. You can weld with electrodes up to 4 mm in diameter.
Key Features
• Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• Double welding output (20-100A / 90-190A)
• A.C. generator, 230V/110V
• Yanmar diesel engine
• Ground fault interruptor
• Sockets: 1 x 230V 16A - 1 x 110V 32A - 1 x 110V 16A
• Electric starter
• Protective frame
• Meets EC directives
WELDING
- Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
- Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
- Open circuit voltage: 98 V
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- Double welding scale 20-100A / 90-190A
- A.C. generator, single-phase and three-phase
GENERAL
- Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
- Protective frame
- Dry weight TS 200 DS/CF: 130 kg
- Dry weight TS 200 DES/CF: 150 kg
- Dimensions: 900x550x620 mm
- Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)
Technical Specification
Technical Specification
MPN | 35.27273Y |
SKU | 35.27273Y |
