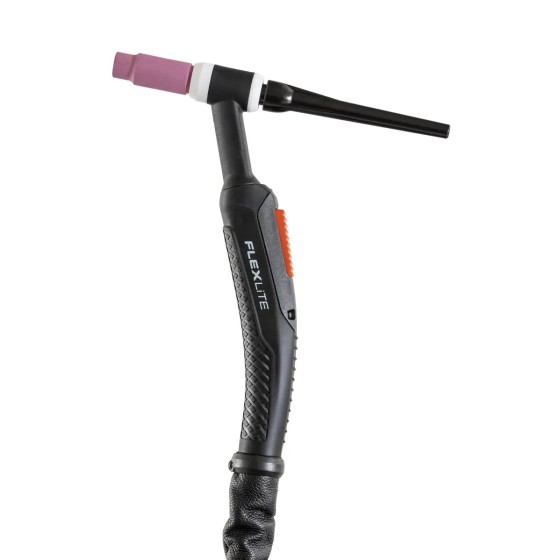

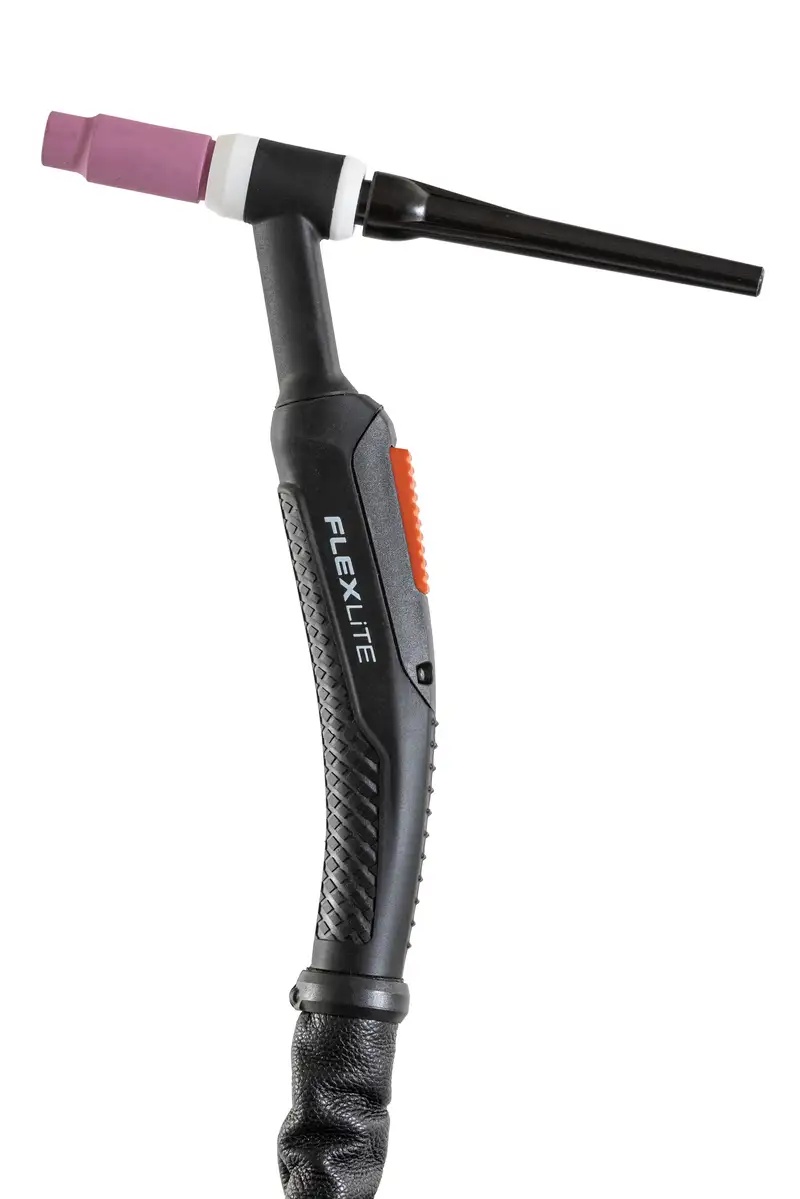

Kemppi TX 225G TIG Welding Torch ( 4M & 8M & 16M )

TX 225G TIG Welding Torch

Gas-Cooled TIG Torch – 4 m, 8 m & 16 m Options

The TX 225G TIG Welding Torch is a gas-cooled, high-current TIG torch designed for professional welding applications where power, durability, and stability are required. Rated at 220 A DC and 160 A AC (40% duty cycle), it features a rigid 70° neck and a large torch head, providing excellent heat resistance and controlled handling during higher-amperage TIG welding.

Available with 4 metre, 8 metre, or 16 metre cable options, the TX 225G is suitable for both workshop-based welding and larger fabrication environments where extended reach is required without repositioning the power source.

What It’s Used For

• Medium to heavy-duty TIG welding
  Fabrication and production welding
  Higher-amperage TIG applications
  Workshop and industrial welding environments

Features

• Gas-cooled TIG welding torch
  Rated 220 A DC / 160 A AC (40% duty cycle)
  Rigid 70° neck for stable, precise torch control
  Large torch head for higher-current TIG welding
  Available with 4 m, 8 m, or 16 m cable lengths
  Robust, professional-grade construction

Technical Data

• Cooling type: Gas (air-cooled)
  Load capacity (40% DC / Argon): 220 A
  Load capacity (40% AC / Argon): 160 A
  Neck type: Rigid (70° angle)
  Torch head size: Large
  Cable length options: 4 m / 8 m / 16 m
  Remote control: Optional
  Electrical rating (remote, nominal): 10 V / 10 mA
  Gas/current connection: G1/4
  Control connection: 7-pin
  Standards: IEC 60974-7

Why Buy the TX 225G TIG Torch?

• High current capacity for demanding TIG applications
  Rigid neck provides stable, controlled torch positioning
  Large torch head improves durability and heat handling
  Choice of cable lengths to suit any workspace
  Proven, professional Kemppi torch quality
