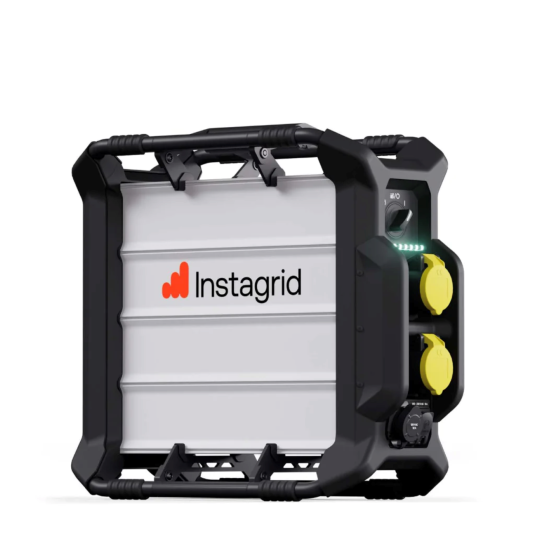

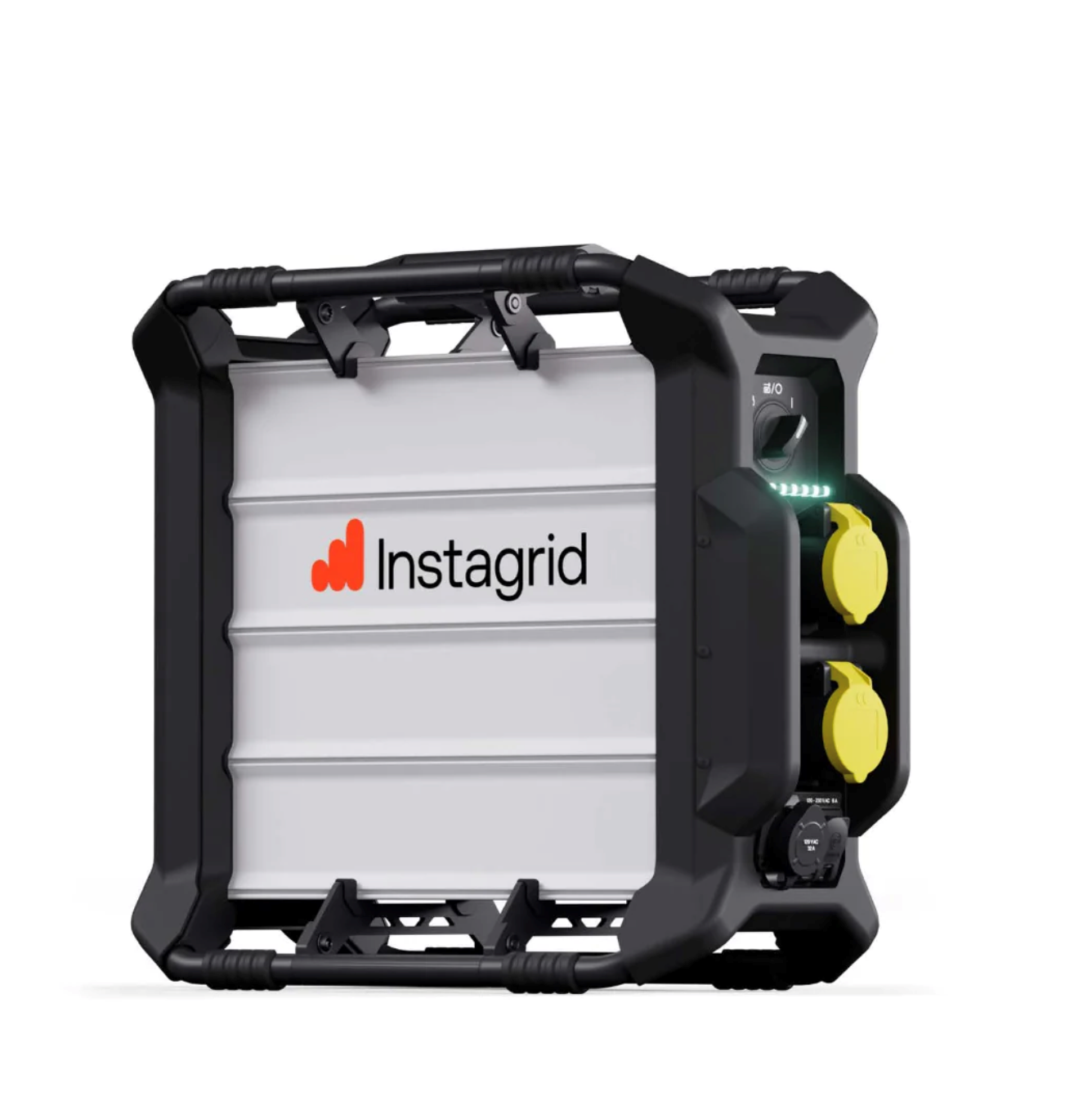

Instagrid Go 110V Battery
Instagrid Go 110V Battery Instagrid Go 110V Battery Instagrid Go 110V Battery Instagrid Go 110V Battery Instagrid Go 110V Battery

Instagrid batteries Instagrid Go 110V Battery

SKU: INSTA110 | MPN: INSTA110

Be the first to review this product

£4,315.20 £3,596.00
In Stock In stock
-
- +

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

Instagrid GO 36 LV Portable Power Supply System

At Premier Welding we aim to offer amazing value for top quality products. The Instagrid GO 36 LV is a revolutionary portable power supply engineered for professionals who need reliable electricity anywhere, without the limitations of traditional generators. Weighing just 21 kg, it is compact enough to carry in one hand yet powerful enough to rival 32A / 110V site power.

Package Includes

Instagrid GO 36 LV Power Supply Unit
Integrated carry handle
Charging cable

This is ideal for:

  • Construction sites
    Remote locations and off-grid work
    Events and temporary power supply
    Professionals needing clean, silent power indoors or outdoors

What Does It Power?

  • Power tools such as saws, breakers, mixers and drills
    Welding machines
    Pressure washers
    Sensitive electronics and devices requiring a pure sine wave supply

Features

  • Rated output power: 3.6 kW (2 x 16 A)
    Peak output power: 18 kW
    Compact, lightweight design – just 21 kg
    Zero local emissions – safe for indoor use
    Silent operation – fanless design (<30 dB)
    Fast recharge – under 3 hours from a standard supply
    App-enabled monitoring of runtime, charge, temperature and location
    Fleet management tools for theft prevention and usage statistics
    IP54 protection rating – suitable for outdoor and indoor use
    Robust, double-insulated housing

Performance Examples

  • Cut-off saw (2,700 W): up to 38 cuts in cast iron pipe Ø110 mm
    Arc welding: up to 89 electrodes Ø2.5 mm
    Breaker (2,200 W): demolishes ~7.5 tonnes of concrete slabs
    Construction table saw (3,000 W): ~4,100 cuts in timber 50 × 100 mm
    Diamond core drill (3,300 W): ~32 holes Ø150 mm × 150 mm deep
    Pressure washer (3,000 W): cleans ~60 m² area

Technical Data

  • Output voltage: 110 V AC / 50 Hz
    Rated power: 3.6 kW
    Peak power: 18 kW
    Overload handling: up to 300% (10.8 kW) for 6.5 seconds
    Battery capacity: 2,074 Wh (24 packs, 86.4 Wh each)
    Input voltage (charging): 100–240 V AC / 50–60 Hz
    Recharge time: <2.5 h (0–80%), <3 h (0–100%)
    Dimensions (L × W × H): 458 × 210 × 420 mm
    Weight: 21 kg
    Protection: IP54
    Insulation class: II (double-insulated)
    Circuit protection: eFuse 32 A + 16 A thermal breaker
    Operating temperature range: -20 °C to +60 °C

Why Buy the Instagrid GO 36 LV?

The Instagrid GO 36 LV offers silent, emission-free, and reliable power in a lightweight and portable package. Delivering up to 3.6 kW continuous and 18 kW peak output, it provides the performance needed for demanding professional applications. With smart energy-saving features, robust IP54 protection, and rapid recharging, it is the modern alternative to noisy, polluting generators. Backed by a 4-year manufacturer’s warranty, Instagrid GO is the portable power solution for professionals who need dependable energy on the go.

Specifications

General

SKU
INSTA110
Weight (kg)
21
Manufacturer
Instagrid batteries
MPN
INSTA110

Frequently Asked Questions

How to choose a welder?
When choosing a welder, consider the type of welding you'll be doing (MIG, TIG, or Stick), the materials you'll work with, and your skill level. Look for a machine with the right amperage range, portability, and safety features. Don’t forget to check reviews!
What equipment do welders use?
Welders use various equipment, including welding machines (MIG, TIG, and stick welders), protective gear (helmets, gloves, and aprons), gas cylinders, welding rods, and accessories like clamps and wire brushes. Proper tools ensure safety and quality in welding projects.
What is a duty cycle on a welder?
The duty cycle on a welder refers to the percentage of time it can operate within a specific period, typically 10 minutes, without overheating. For example, a 60% duty cycle means the welder can run for 6 minutes and must cool for 4 minutes.
What is a multiprocess welder?
A multiprocess welder is a versatile welding machine that can perform various welding techniques, such as MIG, TIG, and stick welding, all in one unit. This flexibility makes it ideal for different projects, allowing users to switch processes easily as needed.
What is amperage in welding?
Amperage in welding refers to the electric current flowing through the welding circuit, measured in amperes (amps). It determines the heat generated during the welding process, influencing penetration and bead shape. Proper amperage is crucial for achieving strong welds.
What is slag inclusion in welding?
Slag inclusion in welding refers to the presence of non-metallic solid materials, such as slag, trapped within the weld bead. This defect can weaken the weld's integrity, leading to reduced strength and potential failure. Proper technique and cleaning can help prevent it.
What is the difference between AC and DC welding?
AC (Alternating Current) welding is ideal for aluminium and magnesium, providing a smoother arc and better cleaning action. DC (Direct Current) welding offers a more stable arc and deeper penetration, making it suitable for steel and other ferrous metals.
What is welding equipment?
Welding equipment refers to the tools and machines used to join materials, typically metals, through the application of heat and pressure. This includes welding machines, electrodes, torches, protective gear, and accessories essential for safe and effective welding processes.
What kind of welder should I buy?
Choosing a welder depends on your needs. For beginners, a MIG welder is user-friendly and versatile. If you need portability, consider a TIG welder for precision work. For heavy-duty tasks, stick welders are robust. Assess your projects to make the best choice!
What to look for in a welding machine?
When choosing a welding machine, consider the type of welding (MIG, TIG, or MMA), power output, duty cycle, portability, and ease of use. Look for reliable safety features, warranty, and compatibility with your materials. Brand reputation and customer support are also key.
What type of welding is the most expensive?
The most expensive type of welding is typically laser welding. This method requires advanced technology and equipment, making it costlier than traditional techniques like MIG or TIG welding. Its precision and efficiency, however, can justify the higher investment.
Where can I buy welding supplies?
Reputable suppliers, such as Premier Welding provides a comprehensive selection of welding supplies, including consumables, accessories, and equipment suitable for all welding processes. High-quality welding supplies can significantly improve efficiency, safety, and weld quality. If you are struggling to find an item on our website, please do not hesitate to contact us.
Where to buy a welder near me?
To buy a welder near you, check local welding supply stores, hardware shops, or specialised retailers. You can also explore online options like Premier Welding for a wide range of welders and accessories, often with delivery across the UK.
Where to buy welding equipment?
You can buy welding equipment from various sources in the UK, including specialist welding suppliers like Premier Welding, local hardware stores, and online retailers such as Amazon and eBay. Always compare prices and check reviews for quality assurance.
Which welding method is easier for beginners, MIG or TIG?
MIG welding is generally easier for beginners compared to TIG. It requires less skill to master, as it uses a continuous wire feed and is more forgiving with settings. TIG welding, while offering greater control and precision, demands more practice and technique.
