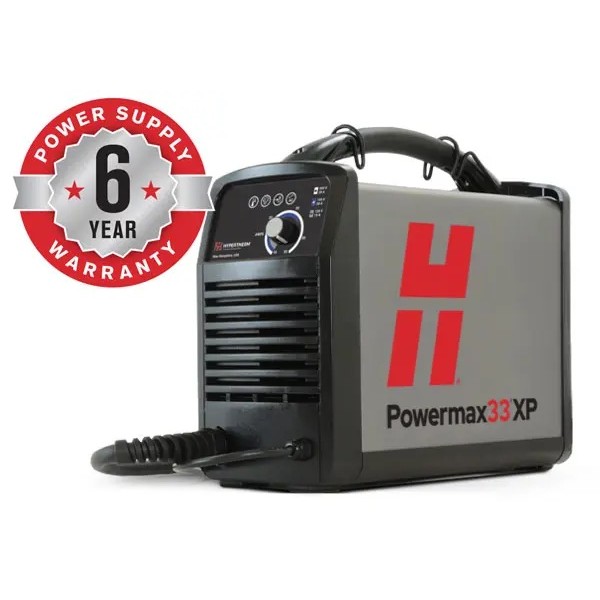

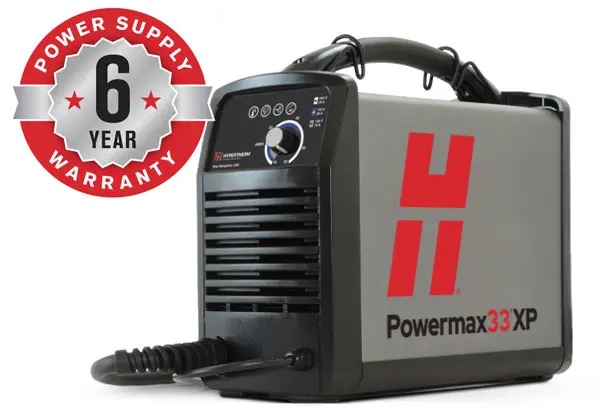

Hypertherm Powermax 33 XP Plasma Cutter [240V]

Overview

The Hypertherm Powermax33 XP is a lightweight, portable plasma cutting system designed to deliver professional cutting performance in a compact package. With 33 amps of output power and a unique “two-in-one” design, the Powermax33 XP gives users the flexibility to cut thicker materials while also producing detailed, high-quality cuts on thinner metal using FineCut® consumables.

Built for workshops, maintenance teams, fabrication work, automotive repair, agricultural use and on-site cutting jobs, the Powermax33 XP is ideal for users who need a reliable plasma cutter that is easy to move, simple to use and powerful enough for a wide range of metal cutting applications.

The system can cut electrically conductive metals including mild steel, stainless steel and aluminium, and can also be used for gouging with compatible HyAccess™ gouging consumables.

Package Includes

Standard CE configuration includes:

Hypertherm Powermax33 XP power supply
Duramax LT hand torch with 4.5m lead
Work clamp with 4.5m lead
Input power cable
Starter consumables

Cutting Capacity

The Powermax33 XP delivers impressive cutting performance for a compact, portable plasma cutter.

Recommended Cut: 13mm at 400mm/min

Recommended Cut: 16mm at 250mm/min

Severance Cut: 20mm at 125mm/min

Portable and Easy to Use
The Hypertherm Powermax33 XP is small, lightweight and easy to transport, making it a practical choice for both workshop and site use. Simplified controls help users get set up quickly, while the continuous pilot arc makes it easier to cut metal grate, mesh or rusted metal without needing to retrigger the torch.

Two-in-One Cutting Performance
The Powermax33 XP offers excellent versatility with its two-in-one design. It delivers high-power capability for cutting thicker metal and can also be used with FineCut consumables for more detailed, cleaner cuts on thinner material.

Dual Voltage Flexibility
The Powermax33 XP can run from a 240V supply and, depending on the region, can also be used with a 120V supply. Auto-Voltage™ technology helps make the machine more versatile, allowing users to work in different environments with less hassle.

Long Consumable Life
Hypertherm consumables are designed for excellent performance and long service life. The Powermax33 XP offers up to 10 times longer consumable life compared with some competitors, helping to reduce running costs over time.

Built for Reliability
Powermax plasma cutters are known for their durability and long working life. The Powermax33 XP has been designed for demanding environments, with a rugged torch and reliable components tested to perform in tough working conditions.

Ideal For

The Hypertherm Powermax33 XP is suitable for a wide range of users and industries, including:

Automotive repair and restoration
Metal art and signage
Property and plant maintenance
HVAC and mechanical contracting
Educational and trade schools
Agricultural and equipment maintenance
General workshop cutting
On-site maintenance and repair work

Technical Specifications

Input Voltage:
120–240V, 1PH, 50/60Hz

Output Current:
15–33A

Rated Output Voltage:
125 VDC

Duty Cycle at 40°C:
35% at 240V / 20% at 120V

Open Circuit Voltage:
256 VDC

Weight with 4.5m Torch:
9.5kg

Dimensions with Handles:
356mm D x 140mm W x 292mm H

Gas Supply:
Clean, dry, oil-free air or nitrogen

Recommended Gas Flow / Pressure:
113.3 l/min at 80 psi / 5.5 bar

Input Power Cable Length:
3m

Power Supply Type:
Inverter – IGBT

Engine Drive Requirement:
5.5kW for full 33A output

Warranty:
6-year power supply / 1-year torch

Why Buy the Hypertherm Powermax33 XP?

The Hypertherm Powermax33 XP is a professional-grade portable plasma cutter that gives users excellent cutting power, long consumable life and reliable performance in one compact system. Its dual voltage capability, FineCut option and 20mm severance capacity make it a strong choice for workshops, site work, maintenance teams and anyone needing a dependable plasma cutting solution.

With Hypertherm’s reputation for quality and a 6-year power supply warranty, the Powermax33 XP offers excellent long-term value for professional and industrial users.
