GYS POWERDUCTION 38LG (S90) (240V)
GYS POWERDUCTION 38LG (S90) (240V)

GYS POWERDUCTION 38LG (S90) (240V)

SKU: GYS-090743 | MPN: 090743

£3,693.74 £3,078.12
In Stock In stock
-
- +

#

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

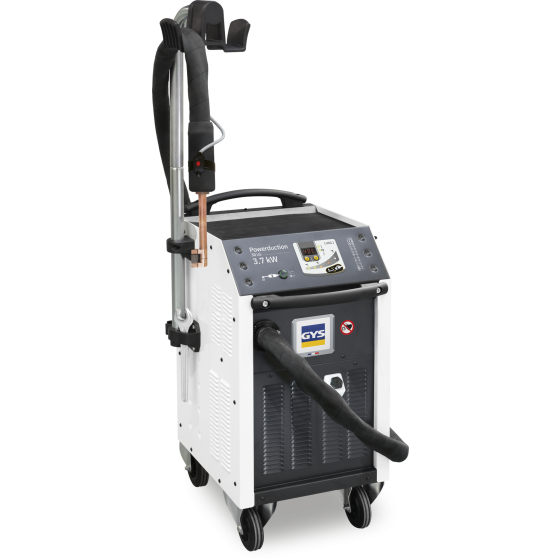

Powerduction 38LG Induction Heating Machine

The Powerduction 38LG is a single-phase induction heating machine designed for professional use. It operates using microprocessor-controlled electromagnetic induction and is intended for heating ferrous materials within the limits specified by the manufacturer

The unit forms part of the Powerduction 37LG / 38LG / 39LG / 49LG / 50LG range and is supplied as a liquid-cooled machine with an integrated cooling circuit

.

Powerduction 38LG – S90 adaptor

Powerduction 38LG induction heating machine
Fixed S90 adaptor
6m power cable



Heating Capabilities

  • Rated input power: 3,700 W
    Rated output power: 1,800 W
    Processing frequency: 15–30 kHz (microprocessor controlled)
    Heating power adjustment range: 800 W to 3.7 kW

    Heating performance is adjustable via the front panel power settings.

    The machine is designed to heat ferrous materials only.

Features

  • Microprocessor-controlled induction heating
    Heating power indicators (800 W – 3.7 kW range)
    Adjustable heating power controls
    Integrated cooling circuit with temperature monitoring
    Cooling circuit alarm indicator
    Thermal protection indicator (machine or cooling circuit)
    Inductor fault indicator
    Inductor change mode indicator and activation button
    LED worklight illuminating the heating point
    Internal fuse: T4 A – 250 VAC – 5x20
    Protection class: IP21

Technical Data

  • Rated input voltage: 185 V – 240 V
    Rated frequency: 50 Hz – 60 Hz
    Number of conductors: 1 Phase + Earth
    Rated input current: 25 – 20 A
    Rated input power: 3,700 W
    Rated output power: 1,800 W
    Processing frequency: 15–30 kHz
    Power cable length: 4 m (38LG) / 6 m (38LG UK)
    Lance length: 2 m
    Tank capacity: 1.5 litres
    Protection class: IP21
    Minimum generator set: 4.5 kVA
    Weight (with accessories + liquid): 50 kg
    Dimensions: 53 x 70 x 37 cm

Cooling System

  • Tank capacity: 1.5 litres
  • Approved coolant types:
  • Special welding coolant 2 L
    Special welding coolant 5 L
    Special welding coolant 10 L

Safety & Compliance

  • Designed for heating ferrous materials only
    Built-in thermal protection system
    Cooling circuit alarm protection
    Protection class IP21

Why Buy the Powerduction 38LG

The Powerduction 38LG is a 3.7 kW single-phase, microprocessor-controlled induction heating machine with adjustable output from 800 W to 3.7 kW, liquid cooling, integrated thermal and cooling protection systems, and IP21 protection, designed specifically for heating ferrous materials in professional environments.

Specifications

General

SKU
GYS-090743
Weight (kg)
15
Manufacturer
GYS
GTIN / Barcode
8514400000
MPN
90743
Voltage
240

Product Attachments

090743
(16.82 MB)
datasheet_36370
(551.65 kB)

Frequently Asked Questions

No Questions
Please, mind that only logged in users can submit questions
