GYS POWERDUCTION 220LG (L20/B4) - 10m lance (400 V three-phase)

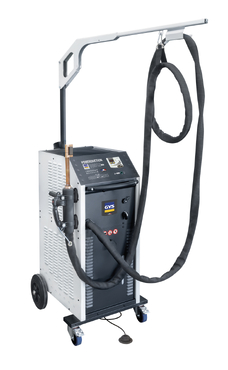

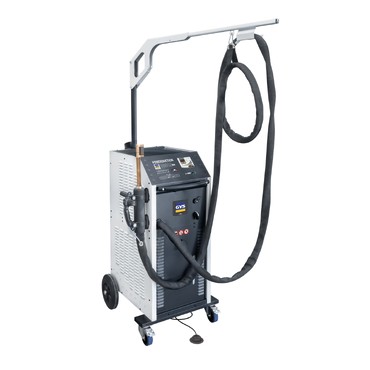

Powerduction 220LG Induction Heater

Powerduction 220LG Induction Heater
The POWERDUCTION 220LG induction heater supplies instant heating power for loosening seized parts and heating steel or aluminium. Flameless, its heating is accurate, instantaneous and safe for the working environment. Thanks to its liquid cooling system, the machine can operate continuously at its maximum output of 22 kW, making it suitable for intensive industrial use.

Designed for use on a 400 V three-phase supply with a ≥32 A socket, the POWERDUCTION 220LG delivers high productivity and consistent heating performance for demanding industrial environments.

Package Includes

POWERDUCTION 160 (LG) induction heating unit
Adaptor (32L)  Heating Inductor (L20/B4)

Heating Capabilities

• Nut M30: 3 seconds
  Sheet metal 2 mm: 1 second
  Sheet metal 4 mm: 3 seconds
  Sheet metal 8 mm: 12 seconds
  Metal rod Ø10 mm: 4 seconds

  Heating times may vary depending on material composition and workpiece geometry.

This is ideal for:

Industrial maintenance and repair
Heating seized bolts, joints and mechanical components
Heavy vehicle, construction and agricultural equipment maintenance
Heating for bending or straightening metal parts
Annealing, brazing and shrink fitting operations
Applications requiring powerful, controlled flameless heating

Features

• Instant flameless induction heating
  Heating power: 22 kW
  Power adjustable in 2200 W increments
  Liquid-cooled system for continuous operation at maximum output
  Integrated heating time management system
  Compatible with optional Powerduction Heat Controller intelligent temperature regulation
  6 m induction cable allowing work at height or in difficult access areas
  Designed for intensive industrial environments
  Precise heating applied directly to the metal core

Technical Data

• Power Supply: 400 V three-phase
  Supply Requirement: ≥32 A
  Heating Power: 22 kW
  Power Adjustment: 2200 W increments
  Heater Frequency: 20 – 60 kHz
  Cooling System: Liquid cooled
  Cooling Tank Capacity: 30 L
  Duty Cycle @ 35°C: 100%
  Induction Cable Length: 10 m
  Dimensions: 118 × 80 × 60 cm
  Weight: 141 kg
  Standard: IEC 60335-1

Why Buy the Powerduction 220LG

The POWERDUCTION 220LG delivers powerful 22 kW flameless induction heating with continuous duty operation, precise heating control and industrial-grade reliability, making it an essential tool for heavy maintenance, engineering and industrial heating applications.
