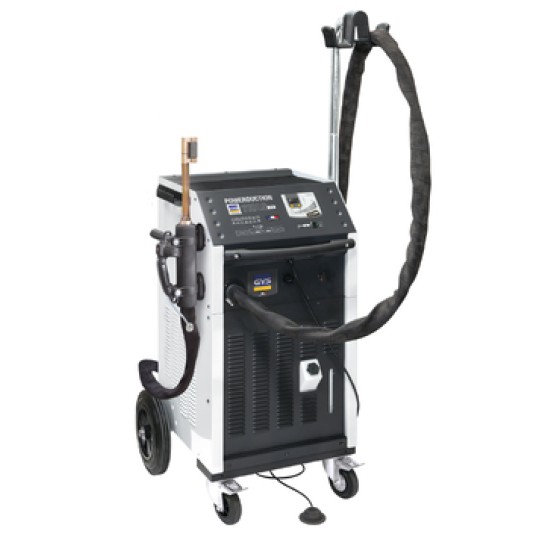

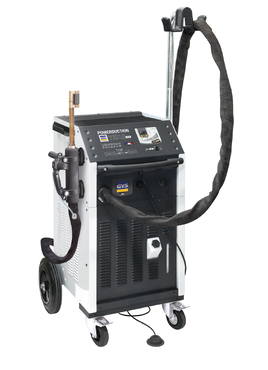

GYS POWERDUCTION 110LG (400 V three-phase)
GYS POWERDUCTION 110LG (400 V three-phase) ¡Descubra el calentamiento por inducción en solo 2 minutos! GYS POWERDUCTION 110LG (400 V three-phase)

GYS POWERDUCTION 110LG (400 V three-phase)

SKU: GYS-058590 | MPN: 058590

£7,088.40 £5,907.00
In Stock In stock
-
- +

#

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

POWERDUCTION 110LG – 11 kW Water-Cooled Induction Heater

The POWERDUCTION 110LG induction heater provides instant heating power for loosening seized parts and heating steel or aluminium. Featuring flameless induction technology, it delivers precise, instantaneous heating that is safe for the working environment. Thanks to its liquid-cooling system, the machine can operate continuously at its maximum output of 11 kW. Designed for use on a three-phase 16 A socket, it is particularly effective for mechanical work on heavy goods vehicles, construction equipment and agricultural machinery.

Package Includes

POWERDUCTION 110LG induction heating unit
Adaptor (32L)  Heating Inductor (L20/B4)



Heating Capabilities

  • Steel
    Aluminium

    Heating performance (manufacturer data):

    M18 nut: 1 second
    2 mm sheet: 2 seconds
    4 mm sheet: 4 seconds
    Ø10 mm rod: 7 seconds

    Heat penetrates to the core of the metal to a depth of approximately 6 mm and can bring steel to red heat (around 800°C).

This is ideal for:

Mechanical work and vehicle maintenance
Heavy goods vehicle repair
Public works and construction equipment maintenance
Agricultural machinery servicing
Industrial, maritime and railway maintenance

Typical applications include:

Straightening bent chassis (not HLE steel)
Releasing bolts and steering ball joints without damaging rubber components
Removing seized hub bearings
Removing exhaust systems
Annealing metal parts
Heating metal for bending
Brazing operations

Features

  • Heating power: 11 kW
    Power adjustable in 1,000 W increments
    Induction frequency: 20 – 60 kHz
    Water-cooled induction heating system
    Designed for continuous operation at maximum power
    Flameless, precise and localised heating
    Integrated heating time management system
    Compatible with optional smart temperature controller
    Four-metre induction cable allowing work at height or in confined areas
    Designed for heavy-duty mechanical and industrial applications

Technical Data

  • Input Voltage: 400 V three-phase
    Socket Requirement: 16 A three-phase
    Rated Power: 11 kW
    Frequency: 20 – 60 kHz
    Duty Cycle @ 35°C: 100%
    Cooling System: Water cooled
    Cooling Tank Capacity: 7 L
    Dimensions: 59 × 88 × 59 cm
    Weight: 86 kg
    Power Cable Length: 5 m
    Induction Cable Length: 4 m
    Manufactured in France

Why Buy the POWERDUCTION 110LG?

The POWERDUCTION 110LG delivers powerful 11 kW induction heating with continuous-duty performance, deep heat penetration and precise flameless operation, making it an ideal solution for demanding mechanical, industrial and heavy vehicle maintenance applications where rapid heating of seized components is required.

Specifications

General

SKU
GYS-058590
Weight (kg)
86
Manufacturer
GYS
GTIN / Barcode
3154020058590
MPN
58590
Voltage
240

Product Attachments

Frequently Asked Questions

What is the warranty on GYS welders?
GYS welders come with a 2-year warranty covering manufacturing defects. Register your product to activate the warranty.
Are GYS welders suitable for professional use?
Yes, GYS welders are designed for professional and industrial applications, offering durability and advanced features for demanding tasks.
What power supply do GYS welders require?
GYS welders operate on 230V single-phase or 400V three-phase power, depending on the model. Check product specifications for details.
What materials can I weld with a GYS welder?
GYS welders are suitable for welding steel, stainless steel, and aluminium. Material compatibility depends on the model and welding process.
What is the duty cycle on a GYS welder?
Duty cycles vary by model. For example, the GYS AUTOPULSE 320-T3 has a duty cycle of 320A at 60%. Refer to the specifications for details.
How energy efficient are GYS welders?
GYS welders utilise inverter technology for energy efficiency, reducing power consumption while maintaining performance.
Does Premier Welding offer financing options for GYS welders?
Yes, Premier Welding offers 0% APR financing through PayPal for orders over £99, providing flexible payment options.
How do I choose the right GYS welder for my needs?
Select a GYS welder based on material type, welding process, and thickness. Consult our team for expert guidance.
What length of welding cable comes with GYS welders?
Standard machines include 3 m torch leads and 2 m electrode cables; extensions are available.
Do GYS welders support pulse welding?
Pulse MIG functions are available on selected models for enhanced weld bead control.
What cooling methods are used in GYS inverters?
Air cooled designs with variable speed fans reduce noise and run on demand.
Are GYS welders compatible with external wire feeders?
Dedicated feeder ports on MIG models allow use of high capacity external wire feeders.
Can GYS machines operate on both MMA and TIG?
Multi process models switch between MMA (stick) and TIG modes via a single control knob.
What digital interface features do GYS welders have?
Integrated LCD panels display voltage current and error codes for diagnostics.
What is a multiprocess welder?
A multiprocess welder is a versatile welding machine that can perform various welding techniques, such as MIG, TIG, and stick welding, all in one unit. This flexibility makes it ideal for different projects, allowing users to switch processes easily as needed.
