GYS Portaspot 230v 16Amp
GYS Portaspot 230v 16Amp GYS Portaspot 230v 16Amp GYS Portaspot 230v 16Amp

GYS Portaspot 230v 16Amp

SKU: 022256 | MPN: 022256

Be the first to review this product

£1,121.12 £934.27
In Stock In stock
-
- +

#

Found it cheaper? Request a Price Match

0% interest for 4 months on orders over £99*
Choose PayPal Credit at the checkout. Find out more.

Overview

Click HERE For Data Sheet

Click HERE For Manual

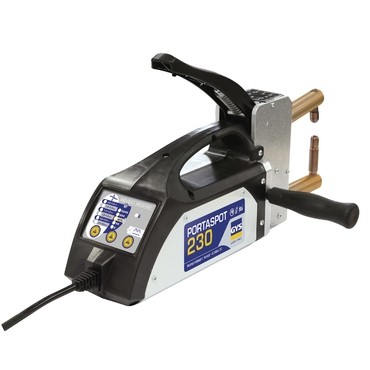

This portable spot welding system is ideal for assembling thin mild steel sheets, such as metal furniture or for vehicle restoration. The Portaspot features an intuitive microprocessor controlled keypad which makes the product very easy to use (non-intensive use).

Key Features

Synergic adjustment : By selecting the thickness of the metal sheets to be joined the PORTASPOT automatically sets the current and the optimum spot welding time. (note : it is also possible to manually adjust the spot welding time)
Able to weld metal sheets in the range 0.6 + 0.6mm to 2.0 + 2.0mm (ideal for 1.2 + 1.2mm).
Operates in continuous or pulse spot welding mode (for harder steels or metal sheets with specific protective coatings).
Adjustable clamping force from 30daN to 120daN (with arm L= 110 mm, PX1)
Insulated thermal handle
Single phase 230V - 16A
Maintenance free
Thermal protection.


Delivered with the arms PX1

Specifications

General

SKU
22256
Weight (kg)
10
Manufacturer
GYS
GTIN / Barcode
3154020022256
MPN
22256

Frequently Asked Questions

How does a spot welder work?
A spot welder works by applying heat and pressure to two metal surfaces at their contact point. Electric current flows through the electrodes, generating heat that melts the metal, creating a weld. Once cooled, the metals bond together securely.
How much is a spot welder?
The price of a spot welder can vary significantly based on the brand and specifications. Generally, you can expect to pay between £200 and £2,000 for a quality spot welder in the UK. For professional-grade models, prices may exceed this range.
How to check spot welding strength?
To check spot welding strength, perform a peel test by applying force to separate the welded parts. Alternatively, use a tensile test to measure the maximum load before failure. Inspect the weld for uniformity and ensure proper electrode pressure and current settings were used.
How to use spot welding machine?
To use a spot welding machine, first ensure the machine is properly set up and connected to power. Position the metal pieces to be welded together, then align the electrodes. Activate the machine, applying pressure and current for a few seconds until the weld forms. Release and inspect the joint.
What is a spot welder?
A spot welder is a type of resistance welding machine used to join two or more metal surfaces by applying heat and pressure at specific points. It creates strong, localized welds, making it ideal for manufacturing processes in automotive and metal fabrication industries.
What is a spot welding?
Spot welding is a process used to join two or more metal sheets together by applying heat and pressure at specific points. This is achieved using electrodes that deliver an electric current, creating a weld nugget at the contact points, ensuring a strong bond.
Wholesale spot welding machine factory?
If you're seeking a wholesale spot welding machine factory in the UK, consider reaching out to established manufacturers like Premier Welding. We offer a range of high-quality spot welding machines tailored to your needs, ensuring reliability and performance.
