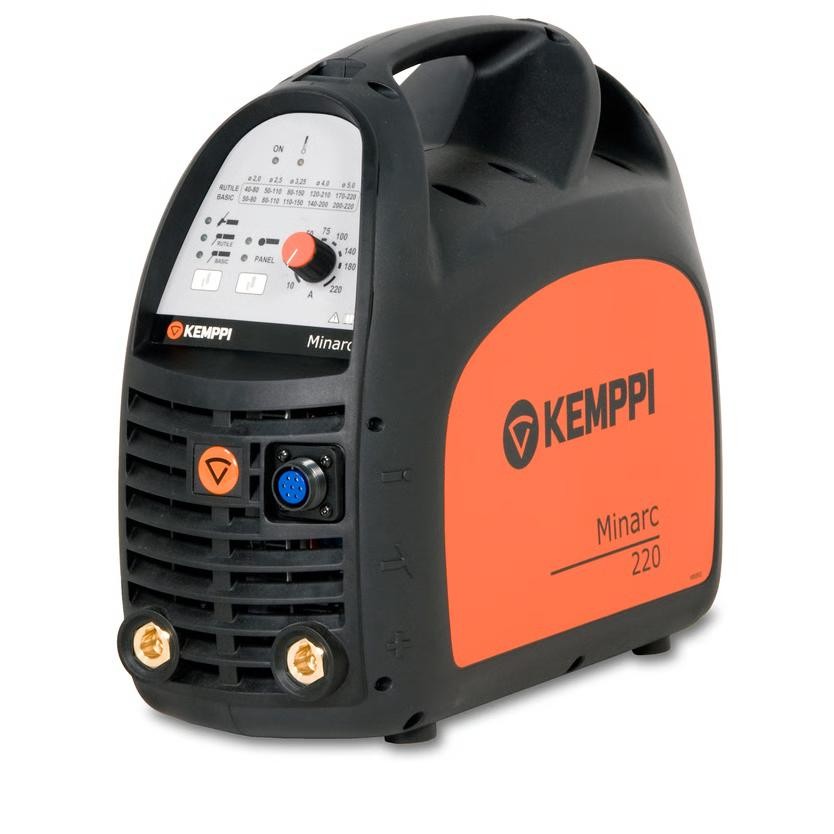

Kemppi Minarc 220 ARC Welder (415V)

The Minarc 220 is a compact, portable DC MMA (Stick) welding machine delivering up to 220 A of power. Built for welding technicians on the move, it offers excellent ignition quality, strong duty cycles, and lightweight portability.

Package Includes

• Minarc 220 Stick Welder [220amps @ 35%, 400V, 1PH]
  Set of Mma Welding Cables

With its 3-phase, 400 V input and 220 A output, the Minarc 220 provides dependable welding performance for professional use. Designed to deliver both high-quality arc ignition and stable welding characteristics, it ensures reliable results across a wide range of applications.

Its Automatic Dynamics feature optimizes arc performance, while the scratch TIG function adds extra versatility. Available with VRD model options for added safety, the Minarc 220 is a true ready-to-weld package designed to get you working straight away.

Features

• 220 A DC MMA Welding Power – Compact yet powerful performance.
  Excellent Welding Quality and Ignition – Consistent, stable arc for reliable results.
  Lightweight Design – Just 10.2 kg for true portability.
  Automatic Dynamics Feature – Optimized arc performance for different conditions.
  Excellent Duty Cycle Performance – Designed for continuous professional use.
  Scratch TIG Feature – Additional flexibility for TIG applications.
  VRD Model Options – Enhanced safety for workplace environments.
  Multiple Voltage Models – Available in 1ph 230 V, 110 V, and 3ph 400 V.
  Ready-to-Weld Packages – Supplied with everything you need to start welding.

Technical Specifications

Mains Voltage: 400 V -20…+15% (3-phase, 50/60 Hz)
Input Power: 8.2 kVA
Output (MMA) @ +40 °C, 35% Duty Cycle: 220 A
Output (MMA) @ +40 °C, 60% Duty Cycle: 170 A
Output (MMA) @ +40 °C, 100% Duty Cycle: 150 A
Output (TIG) @ +40 °C, 35% Duty Cycle: 220 A
Output (TIG) @ +40 °C, 60% Duty Cycle: 180 A
Output (TIG) @ +40 °C, 100% Duty Cycle: 160 A
Power Factor: 0.91
Efficiency: 86%
Recommended Generator Power: 15 kVA
Protection Class: IP23S
Dimensions (L × W × H): 400 × 180 × 340 mm
Weight: 10.2 kg
Standards: IEC 60974-1, -10

Why Choose the Minarc 220?

Combines power and portability for technicians on the move.
Offers excellent arc quality with consistent ignition.
Delivers strong duty cycle performance for professional use.
Includes safety and versatility features like VRD options and scratch TIG.
Supplied as a ready-to-weld package so you can start working right away.

Ideal For

Professional welding technicians
On-site welding projects
Portable workshop setups
Demanding field applications

The Minarc 220 is a lightweight powerhouse that combines 220 A welding performance, excellent ignition quality, and portability into one ready-to-weld package. With features like Automatic Dynamics, VRD safety options, and scratch TIG capability, it’s built for professional welders who need reliability and flexibility on the go.
