Cros-Arc CROSARC COMBI WELD 200MF (MIG,MMA,AC-DC TIG HF)

At Premier Welding, we aim to offer amazing value for top-quality products. We have put together a selection of machines and accessories in "ready to weld" packages to suit all needs and budgets.

Package Includes:

• Cros Arc Combi Weld 200MF Power Source
• M2-4 Metre MIG Welding Torch
• Parker DGT26FX-12 TIG Welding Torch
• 3 Metre MMA Lead
• Earth Return Lead & Clamp
• Gas Hose
• Foot Pedal
• 16A Plug

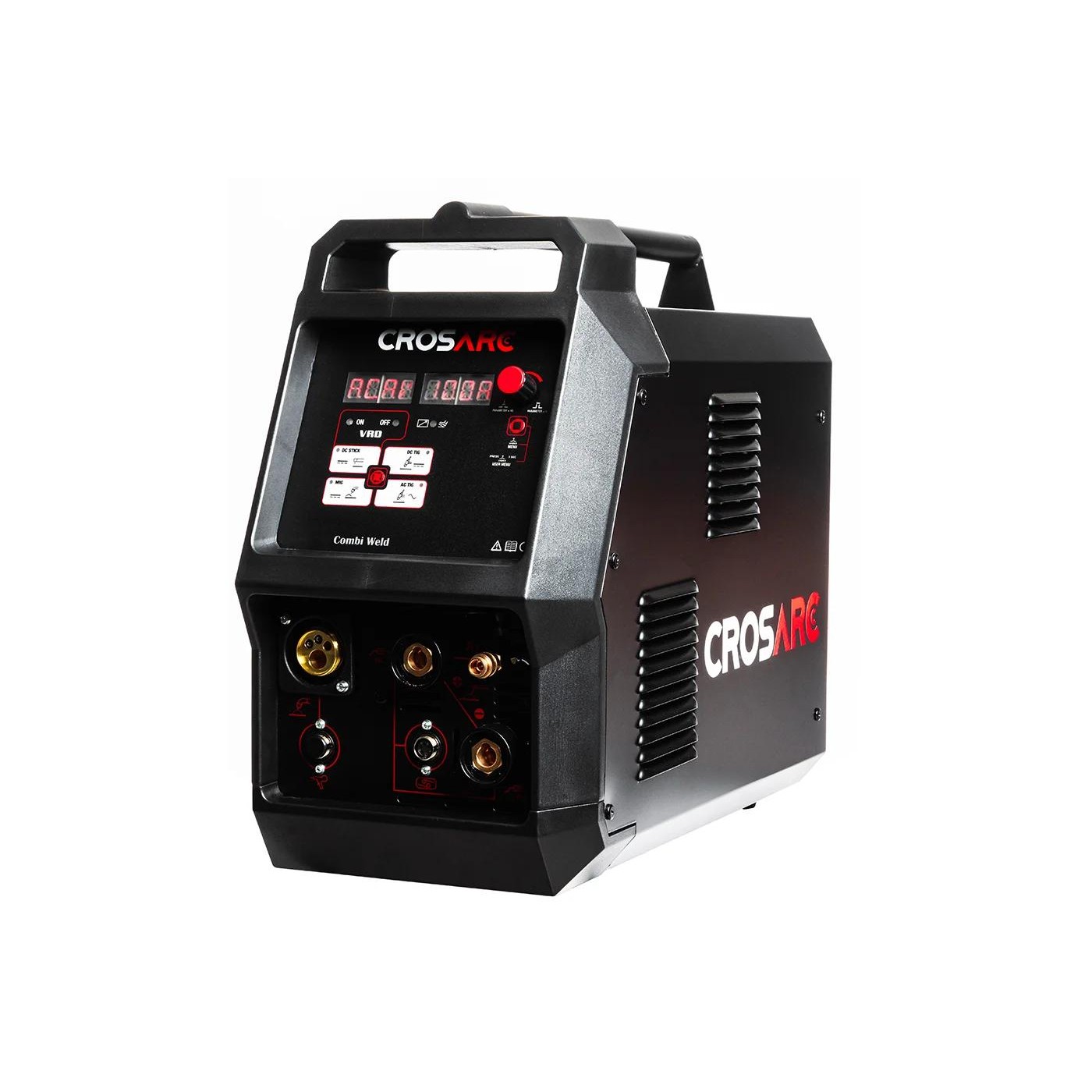

Cros Arc Combi Weld 200MF Multi-Process Welding Inverter

The Cros Arc Combi Weld 200MF is a compact and powerful multi-process welding inverter designed for ultimate versatility. Offering MIG/MAG, MMA, and TIG AC/DC HF/LIFT welding capabilities in one portable package, this machine is perfect for professional workshops, mobile welding applications, and maintenance work.

Built using the latest IGBT inverter technology, the 200MF delivers exceptional arc performance across all processes. With digital volt/amp displays, a 4-roll wire feed system, and adjustable parameters like up/down slope, AC balance, pulse frequency, and pre/post gas flow — this machine gives you complete control over every weld.

Designed for maximum portability and generator-friendly operation, the Combi Weld 200MF is a reliable and flexible choice for welders on the move or those requiring multi-function welding in one efficient unit.

This is ideal for:

• Workshop Fabrication
  Site Welding and Repairs
  Automotive and Agricultural Maintenance
  General Fabrication and Repairs

What does it weld?

Mild Steel
Stainless Steel
Aluminium

Features

• Latest IGBT Multi-Process Inverter Technology
• Digital Volt/Amp Display for Precision Control
• MIG, TIG AC/DC, and MMA Welding Capabilities
• HF Start and Lift TIG Options
• 2T/4T Trigger Mode
• Burn Back Adjustment and Variable Inductance
• Pre/Post Gas Flow Settings
• Up and Down Slope Control
• AC Frequency and AC Balance Control for Aluminium Welding
• Pulse Function and Pulse Frequency Control
• Hot Start and Arc Force for MMA
• Job Save Function for Saving Welding Settings
• VRD Safety Device for MMA
• 4 Roll Wire Feed System for Smooth Wire Delivery
• Accepts 0.6, 0.8, and 1.0mm Wire (5kg Reel)
• Suitable for 1.6mm to 4.0mm MMA Electrodes
• Portable and Generator Friendly
• Easy Setup and Operation
• Complies with EN IEC 60974-1:2022 + A11:2022 / EN IEC 60974-10:2021

Technical Specifications

Input Voltage: 1P~230V (+/-15%) 50/60Hz
Input Current: 16A
Current Range MIG: 40–200A
Current Range TIG: 5–200A
Current Range MMA: 20–200A
Duty Cycle MIG @ 40°C: 200A @ 40%
Duty Cycle TIG @ 40°C: 200A @ 40%
Duty Cycle MMA @ 40°C: 200A @ 40%
Wire Speed: 2–16 m/min
Efficiency: 80%
Power Factor @ 100%: 0.73
Protection / Insulation Class: IP21/F
Cooling: Fan Cooled
Dimensions: 750mm x 375mm x 725mm
Weight: 40Kg
Standards: EN IEC 60974-1:2022 + A11:2022 / EN IEC 60974-10:2021

Warranty
Supplied with a 2-year warranty for your peace of mind.
