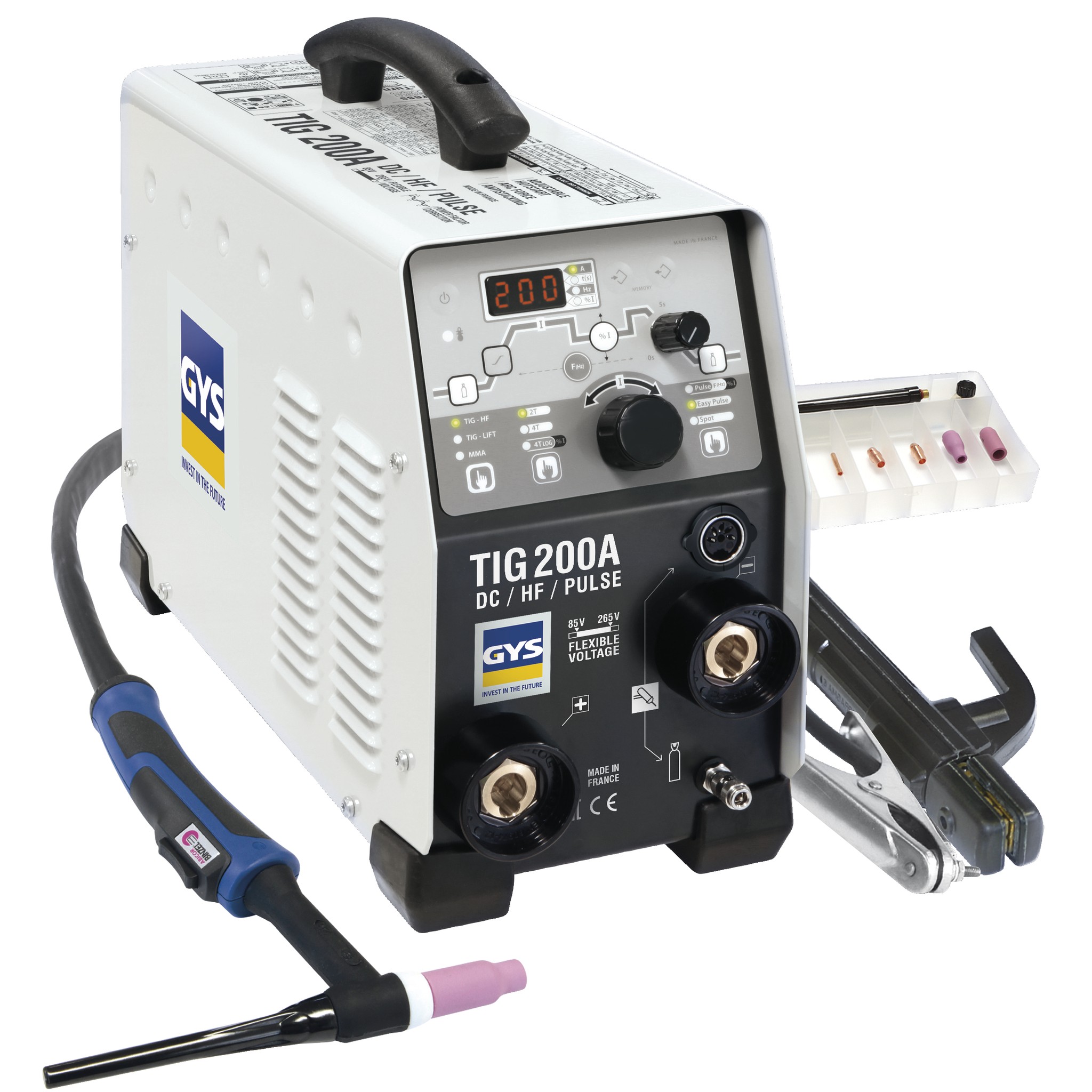

GYS Gysmi TIG 200 DC HF FV Welder (110/240V)
Product Video
Product Video
Information
Information
At Premier Welding we aim to offer amazing value for top quality products. We have put together a selection of machine’s and accessories in “ready to weld” packages to suit all needs and budgets.
This package Includes:
GYS TIG DC HF FV
Torch SR17DB (4m)
MMA kit
Description
This industrial TIG is designed to weld steel, stainless-steel and copper alloys. Its technology and features allow welding with extreme accuracy in TIG and with the capability to weld cellulosic electrodes in MMA.
Display
Digital control panel for an easier use.
Up to 5 memory settings to save chosen welding parameters.
TIG 200
Start-Up:
2 functions : HF (without contact), or TIG LIFT (with contact).
The system helps you to position the electrode before the current increases. A weak intensity is delivered, acting like a « light beam » (available in 4T and 4Tlog).
3 Trigger Modes:
2 Times
4 Times
4 T «LOG»: The user can choose between 2 welding currents (Hot / Cold) at any time by a short press on the torch trigger.
3 Parameters - DC:
TIG: Settings: pre-gas / current increase / intensity (1 or 2 current settings are possible in 4Tlog mode) / post-gas / current decrease.
TIG Pulse: Easy Pulse Mode: The user defines the average welding current. The machine will automatically determine the frequency and the hot/cold current. - Normal Mode: The user defines the hot and cold current and the pulse frequency (0.2 HZ to 20 HZ)
TIG SPOT: Spot welding to prepare the piece before completing the weld.
Technical Specification
Technical Specification
MPN | 011540 |
SKU | GYS-011540 |
Voltage | 110/240 |
